[CompTIA] 220-1101 - A+ (Plus) Core 1 Exam Dumps & Study Guide

Free [CompTIA] 220-1101 - A+ (Plus) Core 1 Practice Questions Preview

• Question 1

  SIMULATION -
  Laura, a customer, has instructed you to configure her home office wireless access point.
  She plans to use the wireless network for finances and has requested that the network be setup with the highest encryption possible.

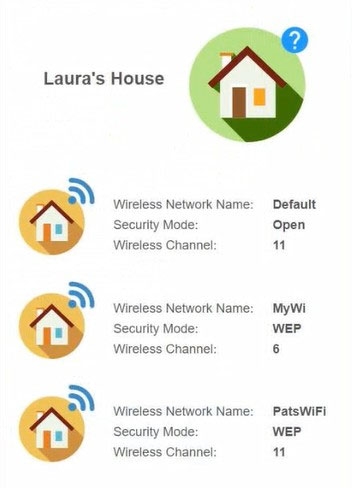

  Additionally, Laura knows that her neighbors have wireless networks and wants to ensure that her network is not being interfered with by the other networks.
  She requests that the default settings be changed to the following.

  Wireless Name: HomeWiFi -

  Shared Key: CompTIA -

  Router Password: Secure$1 -

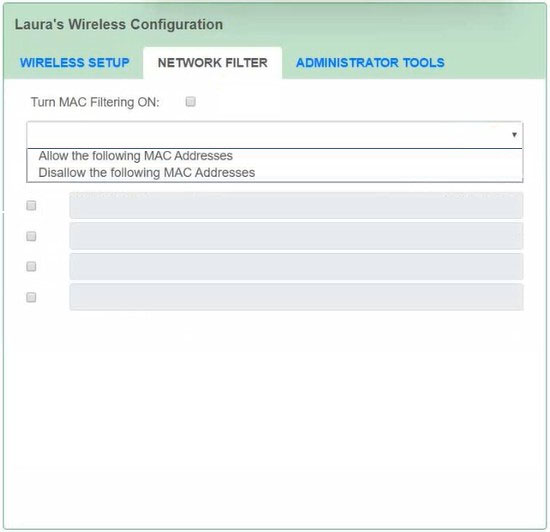

  Finally, Laura wants to ensure that only her laptop and SmartPhone can connect to the network.
  Laptop: IP Address 192.168.1.100
  Hardware Address: 00:0A:BF:03:C4:54
  SmartPhone: IP Address 192.168.1.101
  Hardware Address: 09:2C:D0:22:3F:11

  INSTRUCTIONS -

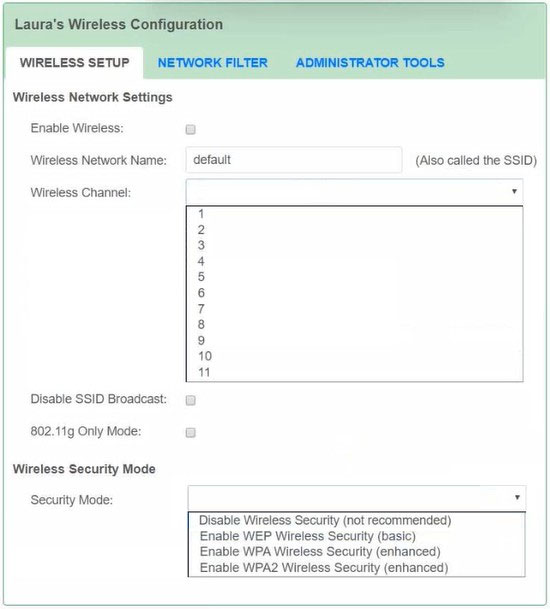

  Configure Laura's wireless network using the network adapter window.
  If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.






  Correct Answer: See interactive view.

  Explanation:

  Based on the question's requirements and the discussion summary, I agree with the suggested answer, with a few clarifications and refinements.
  The user's requirements are to configure a home office wireless access point with the highest encryption possible, prevent interference from neighboring networks, and ensure only her laptop and smartphone can connect.

  Here's a breakdown of why the settings in the suggested answer (with modifications) are appropriate:

  • Wireless Name (SSID): Setting the SSID to "HomeWiFi" as requested is straightforward.
  • Shared Key: The shared key should be set to "CompTIA" as provided in the question. This is the pre-shared key (PSK) for the wireless network.
  • Router Password: The router password should be changed to "Secure$1" as provided in the question. This is for accessing the router's configuration page, not the WiFi password.
  • Encryption: The question specifies "highest encryption possible." WPA3 is the most secure option available. Therefore, WPA3 should be selected (if available in the simulation). If WPA3 is not available, WPA2 with AES is the next best option.
  • Channel Selection: To avoid interference, selecting a channel that is not heavily used by neighboring networks is crucial. The auto setting might work, but manually selecting a channel (1, 6, or 11 in the 2.4 GHz band) after scanning for the least congested one is preferable, if the simulation allows manual configuration.
  • MAC Filtering: Enabling MAC filtering and adding the MAC addresses of the laptop (00:0A:BF:03:C4:54) and smartphone (09:2C:D0:22:3F:11) is essential. This ensures that only these devices can connect to the network, fulfilling Laura's requirement.
  • Disable SSID Broadcast: Checking the "Disable SSID Broadcast" box is a reasonable security measure. It hides the network name from being openly broadcasted, making it slightly harder for unauthorized users to discover the network. This is a common security practice.
  • 802.11 Mode: While setting the 802.11 mode to "802.11g Only" might seem like an option, it's generally not recommended unless there's a specific reason to restrict the network to older devices. A mixed mode (e.g., 802.11b/g/n or 802.11 a/b/g/n/ac/ax) allows newer devices to connect with faster speeds. Consider compatibility versus speed when selecting the mode, and make sure to test the speed on both devices after the configuration is complete.

  In summary, the answer should configure the wireless access point according to the question and discussion summary including Wireless Name, Shared Key, Encryption, Channel Selection, MAC Filtering, and Disable SSID Broadcast.

  Reasoning for not choosing other options:


  • Not configuring MAC filtering would allow any device with the password to connect, violating the requirement to restrict access to only the laptop and smartphone.
  • Not using the highest possible encryption (WPA3 or WPA2 with AES) would leave the network vulnerable to eavesdropping and unauthorized access.
  • Not changing the default router password would leave the router itself vulnerable to compromise.
  • Not selecting an appropriate wireless channel could result in poor performance due to interference.

• Question 2

  DRAG DROP -

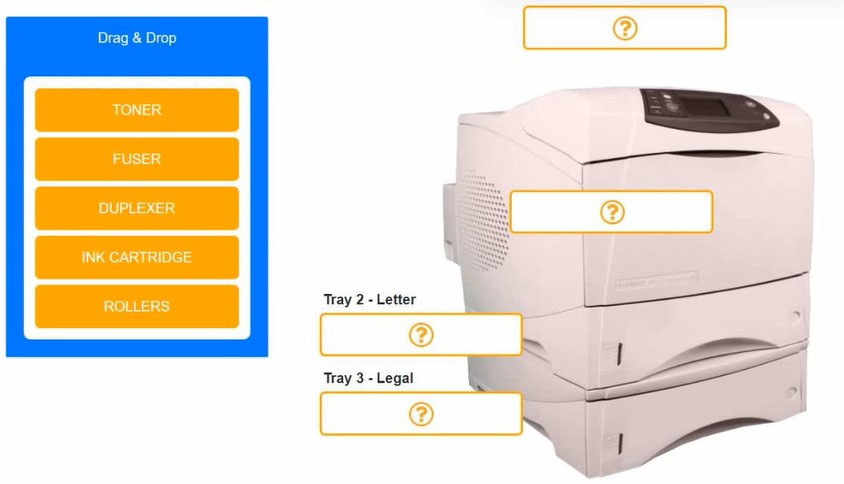

  An office manager reports that a printer is experiencing performance issues. Printouts are smudging when they are handled, and, recently, whenever the manager tries to print oversized documents, the paper jams before anything is printed on it.

  INSTRUCTIONS -
  Using the available printer parts, replace only the faulty components on the office printer to resolve the stated issues.
  If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
  Select and Place:



  Correct Answer: See interactive view.

  Explanation:

  I agree with the suggested answer.
  The problem description indicates two distinct issues: smudging and paper jams with oversized documents. This points to specific components within the printer. The suggested answer effectively addresses these issues by recommending replacement of the fuser and rollers.

  Reasoning:


  • Fuser: The fuser's primary function is to permanently bond the toner to the paper through heat and pressure. When the fuser malfunctions, it fails to properly fuse the toner, leading to smudging. This directly aligns with the reported issue of printouts smudging when handled.
  • Rollers: Rollers are responsible for feeding paper through the printer. Worn or damaged rollers can have difficulty gripping and feeding heavier or oversized paper, frequently resulting in paper jams, especially when attempting to print oversized documents.

  Why other options are not the best fit:

  • Toner: While low toner can cause faded prints, it does not typically cause smudging or paper jams.
  • Leaving the first and third cases empty: There is no description of issue related to them, so it should be left empty.

  Therefore, replacing the fuser and rollers directly addresses the described printer issues, making the suggested answer the most logical and effective solution.



  Citations:

  • Printer Fuser - Function: https://www.ldproducts.com/blog/what-is-a-printer-fuser/
  • Printer Rollers - Function: https://www.tonergiant.co.uk/blog/2023/07/printer-rollers-guide/

• Question 3

  DRAG DROP -
  A small ISP has hired a new technician. Joe, the new technician, is being trained to configure customers' home networks. The training instructor gives the technician a starter kit with cables, cable ends, and other network equipment and asks him to build a working network.
  The computer should be connected to have Internet connectivity and the phone should be connected to have a dial tone.

  INSTRUCTIONS -
  Use the appropriate cables, cable ends, tools and equipment to configure the network and connect all components accordingly.
  There are 2 steps and the simulation starts on step 1.
  If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
  Select and Place:



  Correct Answer: See interactive view.

  Explanation:

  I agree with the suggested answer.
  The task requires configuring a home network to provide internet connectivity to a computer and a dial tone to a phone. This involves selecting the correct tools and cables for the job. The image in the suggested answer accurately depicts the correct usage of the crimping tools. Here's why:

  • RJ45 Crimping Tool (Middle Tool): This tool is correctly used to terminate the CAT5/CAT6 cable with an RJ45 connector. The CAT5/CAT6 cable is then connected from the computer to the modem/router for internet access. This is essential for the computer to access the internet.
  • RJ11 Crimping Tool (Top Tool): This tool is correctly used to terminate the phone cable with an RJ11 connector. The phone cable connects the telephone to the wall jack. This is essential for the phone to have a dial tone.
  • Punch Down Tool (Bottom Tool): This tool is not used in this scenario. Punch down tools are for terminating wires into punch down blocks such as those found on patch panels or telephone distribution blocks.

  Reasoning for Choosing This Answer:
  The provided image shows the correct tools being used for their respective cable types. The RJ45 crimping tool is for Ethernet cables (CAT5/CAT6), which are used for connecting computers to a network. The RJ11 crimping tool is used for telephone cables, which are used to provide a dial tone to a phone.

  Reasoning for Not Choosing Other Answers:
  Any alternative solution would be incorrect if it misidentified the purpose of the crimping tools or connected the wrong cables to the devices. For example, using the punch-down tool for RJ45 or RJ11 connectors would not create a functional connection. Similarly, swapping the RJ45 and RJ11 cables would prevent the computer from accessing the internet and the phone from getting a dial tone.

  The comments in the discussion summary correctly identify each tool and its use case, further solidifying the suggested answer's validity.

  Citations:

  • Networking Cabling, https://en.wikipedia.org/wiki/Network_cabling
  • RJ45 Connector, https://en.wikipedia.org/wiki/RJ45
  • RJ11 Connector, https://en.wikipedia.org/wiki/RJ11,_RJ14,_RJ25
  • Punch Down Tool, https://en.wikipedia.org/wiki/Punch-down_tool

• Question 4

  A technician is tasked with installing additional RAM in a desktop computer. Which of the following types of RAM is MOST likely to be used?


  • A. SODIMM
  • B. DDR3
  • C. ECC
  • D. VRAM

  Correct Answer: B

  Explanation:

  I agree with the suggested answer, which is B (DDR3).
  Reasoning:
  DDR3 is a type of dynamic RAM (DRAM) commonly used in desktop computers. When a technician is tasked with installing additional RAM in a desktop computer, DDR3 is a likely candidate, assuming the computer is compatible with this type of memory.
  Why other options are incorrect:

  • A. SODIMM (Small Outline Dual Inline Memory Module): SODIMMs are typically used in laptops and other small form-factor devices, not desktop computers.
  • C. ECC (Error-Correcting Code) RAM: ECC RAM is mainly used in servers and workstations where data integrity is critical. While it can be used in some high-end desktops, it is not the MOST likely option for a typical desktop computer.
  • D. VRAM (Video RAM): VRAM is used exclusively for graphics cards to store image data and is not installed directly into the motherboard as system RAM.

  Therefore, DDR3 is the most suitable and commonly used type of RAM for upgrading a desktop computer's memory.

• Question 5

  Vertical streaks are appearing on the output of a laser printer. Which of the following items is the MOST likely cause?


  • A. Roller
  • B. Drum
  • C. Transfer belt
  • D. Ribbon

  Correct Answer: B

  Explanation:

  The suggested answer is B. Drum, and I agree with this answer.
  Reasoning: Vertical streaks on laser printer output are most commonly caused by a problem with the drum. The drum is responsible for transferring toner to the paper. A scratch, debris, or uneven wear on the drum's surface will result in a consistent, repeating defect in the same vertical location on each print.
  Here's a detailed breakdown:

  • Drum: The drum is a cylinder coated with a photosensitive material. It receives an electrostatic image, attracts toner, and then transfers the toner to the paper. Any defect on the drum's surface will repeatedly appear as a vertical streak.
  • Roller: Rollers are generally responsible for paper feed and movement. While a damaged roller *could* cause some print quality issues, it's less likely to cause consistent vertical streaks. More likely to cause paper jams or uneven toner distribution but not in vertical lines.
  • Transfer Belt: Transfer belts are found in color laser printers. Their function is to transfer the toner from all the drums to the paper at once. A defect on the transfer belt could cause repeating defects, but it's less common than a drum issue in causing *vertical* streaks because the transfer belt moves the image as a whole and issues appear as banding not streaks.
  • Ribbon: Ribbons are used in impact printers (like dot matrix printers), not laser printers. This option is therefore incorrect.

  Therefore, the most probable cause of vertical streaks in a laser printer is a problem with the drum.

  Reasons for not choosing other answers:

  • A. Roller: While rollers can cause print quality issues, they typically don't manifest as consistent vertical streaks.
  • C. Transfer belt: More likely to cause banding not streaks.
  • D. Ribbon: Laser printers don't use ribbons.

  Citations:

  • Laser Printer Troubleshooting: Common Problems and Solutions, https://www.tonergiant.co.uk/resources/laser-printer-troubleshooting
  • Why is My Laser Printer Streaking? https://www.ldproducts.com/blog/why-is-my-laser-printer-streaking/

• Question 6

  A user is trying to play a DVD on a projector. The user can hear the audio; however, the projector is showing an error message that states:
  HDMI Blocked due to Copy Protection
  Which of the following is the MOST likely cause of the error?


  • A. The HDMI cannot carry the signal from the DVD to the projector.
  • B. The user needs to switch from HDMI to a cable standard such as DisplayPort.
  • C. The projector does not support the necessary HDCP protocol.
  • D. The user needs to enable cony-protected sources in the projector's settings.

  Correct Answer: C

  Explanation:

  I agree with the suggested answer, which is C. The projector does not support the necessary HDCP protocol.
  Reasoning:
  The error message "HDMI Blocked due to Copy Protection" directly indicates an issue with High-bandwidth Digital Content Protection (HDCP). HDCP is a protocol designed to prevent the copying of digital audio and video content as it travels across connections. If the projector doesn't support the HDCP version required by the DVD player, the content will be blocked, resulting in the error message. The key here is that HDCP is a requirement for protected content to be displayed, and the error message explicitly mentions copy protection.

  Why other options are incorrect:

  • A: The HDMI cable itself is capable of carrying the signal. The problem lies in the copy protection handshake.
  • B: Switching to DisplayPort is unlikely to solve the problem unless the DisplayPort connection *also* circumvents HDCP, which is generally not the case. DisplayPort also supports HDCP.
  • D: While some projectors might have settings related to content sources, HDCP is a hardware/firmware level requirement. You cannot simply enable HDCP support through a setting if the hardware doesn't support it. Furthermore, enabling copy-protected sources is more about allowing protected content to be *displayed* if the HDCP handshake succeeds, not about *enabling* HDCP itself.

  Citations:

  • What is HDCP? High-Bandwidth Digital Content Protection, https://www.benq.com/en-us/knowledge-center/what-is-hdcp-high-bandwidth-digital-content-protection.html
  • High-bandwidth Digital Content Protection, https://en.wikipedia.org/wiki/High-bandwidth_Digital_Content_Protection

• Question 7

  While implementing a non-carrier-grade wireless backhaul, a technician notices the current channel selection is extremely polluted with various RF signals. Upon performing a spectral analysis, the technician discovers a channel containing almost no RF pollution. Unfortunately, the technician is unable to select that channel.
  Which of the following is the MOST likely reason for this issue?


  • A. The channel is reserved for licensed band use.
  • B. The channel selection is defective; contact the manufacturer.
  • C. The channel must be unlocked by the vendor.
  • D. The device requires a firmware update to unlock the channel.

  Correct Answer: A

  Explanation:

  The suggested answer of A is correct.
  Reasoning: The question states the implementation is for a "non-carrier-grade wireless backhaul." This implies the use of unlicensed frequency bands. Licensed frequency bands require permission from regulatory bodies (e.g., the FCC in the US) to operate on, and unlicensed devices are generally prohibited from using them. Therefore, the most likely reason the technician cannot select the clean channel is that it is reserved for licensed band use. The description of spectral analysis further points to an intentional block rather than malfunction since the channel is clearly visible but inaccessible.
  Why other options are less likely:

  • B: While a defective channel selection is possible, it's less likely given the information. Defective equipment would not deliberately avoid a specific clear channel.
  • C: While vendors might implement locks for various reasons, it's less common for them to lock channels reserved for licensed use, as that's usually enforced by the hardware or regulatory restrictions.
  • D: A firmware update might unlock new features or channels, but it's less likely to unlock a channel specifically reserved for licensed use, especially without proper authorization.

  Suggested Answer: A

• Question 8

  A user submitted a support ticket that states all of the printouts from a laser printer appear to have double images imposed on them. A review of past printer support tickets shows that a maintenance kit has not been installed in more than a year. Which of the following printer consumables is MOST likely causing the issue?


  • A. Separation pad
  • B. Transfer roller
  • C. Ink cartridge
  • D. Fuser

  Correct Answer: B

  Explanation:

  I agree with the suggested answer.
  The most likely cause of double images on laser printer printouts, especially given the lack of recent maintenance, is a failing transfer roller.
  Reasoning: The transfer roller's primary function is to attract the toner from the drum and transfer it to the paper. When it degrades, it can cause improper toner transfer, leading to the "ghosting" or double image effect described in the question. The fact that a maintenance kit (which often includes a new transfer roller) hasn't been installed in over a year strongly supports this conclusion.
  Why other options are less likely:

  • A. Separation pad: The separation pad is responsible for preventing multiple sheets of paper from feeding at once. A faulty separation pad would cause paper feed issues, not double images.
  • C. Ink cartridge: Laser printers use toner, not ink. This option is incorrect by definition.
  • D. Fuser: While a malfunctioning fuser can cause print quality problems like smudging, it is less likely to cause distinct double images. The fuser's main job is to melt the toner onto the paper. Fuser issues typically result in toner not adhering properly or smearing.

  Given the options and the information provided, the transfer roller is the most logical culprit for the described printing issue.

• Question 9

  A technician is configuring a workstation to be used as a VM host. After installing the necessary software, the technician is unable to create any VMs. Which of the following actions should be performed?


  • A. Disable the BIOS password.
  • B. Enable TPM.
  • C. Enable multithreading.
  • D. Enable Fast Startup.

  Correct Answer: C

  Explanation:

  The suggested answer is C. Enable multithreading.
  Reasoning: Multithreading (specifically, enabling Hyper-Threading on Intel processors or Simultaneous Multithreading on AMD processors) allows a single physical CPU core to behave as two virtual cores. This significantly improves the workstation's ability to handle the demands of running multiple virtual machines concurrently. Virtualization software relies heavily on the CPU's ability to manage multiple threads efficiently. Enabling multithreading provides the necessary processing power to create and run virtual machines effectively. Additionally, it's important to ensure that hardware virtualization features (Intel VT-x or AMD-V) are enabled in the BIOS/UEFI settings.
  Reasons for not choosing other options:

  • A. Disable the BIOS password: Disabling the BIOS password has no direct impact on the ability to create or run virtual machines. The BIOS password primarily controls access to the BIOS settings.
  • B. Enable TPM: TPM (Trusted Platform Module) is a security feature used for things like secure boot and disk encryption. While it can be beneficial in a virtualized environment for security purposes, it's not a prerequisite for creating VMs. Enabling TPM won't directly solve the problem of being unable to create VMs.
  • D. Enable Fast Startup: Fast Startup is a feature in Windows that speeds up the boot process by hibernating the kernel. It has no direct relevance to the ability to create or run virtual machines and may sometimes interfere with virtualization.

  • Multithreading, https://www.intel.com/content/www/us/en/gaming/resources/hyper-threading.html
  • What is TPM?, https://www.windowscentral.com/what-is-tpm-and-why-do-you-need-it-windows-11

• Question 10

  A user's computer is not receiving a network connection. The technician confirms that the connection seems to be down and looks for the user's port on the patch panel. The port and patch panel are not labeled. Which of the following network tools should the technician use to identify the port?


  • A. Network tap
  • B. Punchdown tool
  • C. Toner probe
  • D. Crimper

  Correct Answer: C

  Explanation:

  I agree with the suggested answer, which is C. Toner probe.
  Reasoning: A toner probe, also known as a fox and hound, is specifically designed to trace and identify cables. In this scenario, where the patch panel ports are unlabeled, a toner probe would be the most effective tool for a technician to identify the correct port associated with the user's connection. The toner is connected to the cable, and the probe is used to trace the signal.
  Reasons for not choosing other options:

  • A. Network Tap: A network tap is used to monitor network traffic, not to identify unlabeled ports.
  • B. Punchdown Tool: A punchdown tool is used to terminate wires into a patch panel or wall jack, not for tracing cables.
  • D. Crimper: A crimper is used to attach connectors to the end of cables, not for identifying cables.

  Therefore, the toner probe is the only appropriate tool for the task described.
