• Question 1

  A company has decided to scale its e-commerce application from its corporate datacenter to a commercial cloud provider to meet an anticipated increase in demand during an upcoming holiday.
  The majority of the application load takes place on the application server under normal conditions. For this reason, the company decides to deploy additional application servers into a commercial cloud provider using the on-premises orchestration engine that installs and configures common software and network configurations.
  The remote computing environment is connected to the on-premises datacenter via a site-to-site IPSec tunnel. The external DNS provider has been configured to use weighted round-robin routing to load balance connections from the Internet.
  During testing, the company discovers that only 20% of connections completed successfully.

  Instructions -

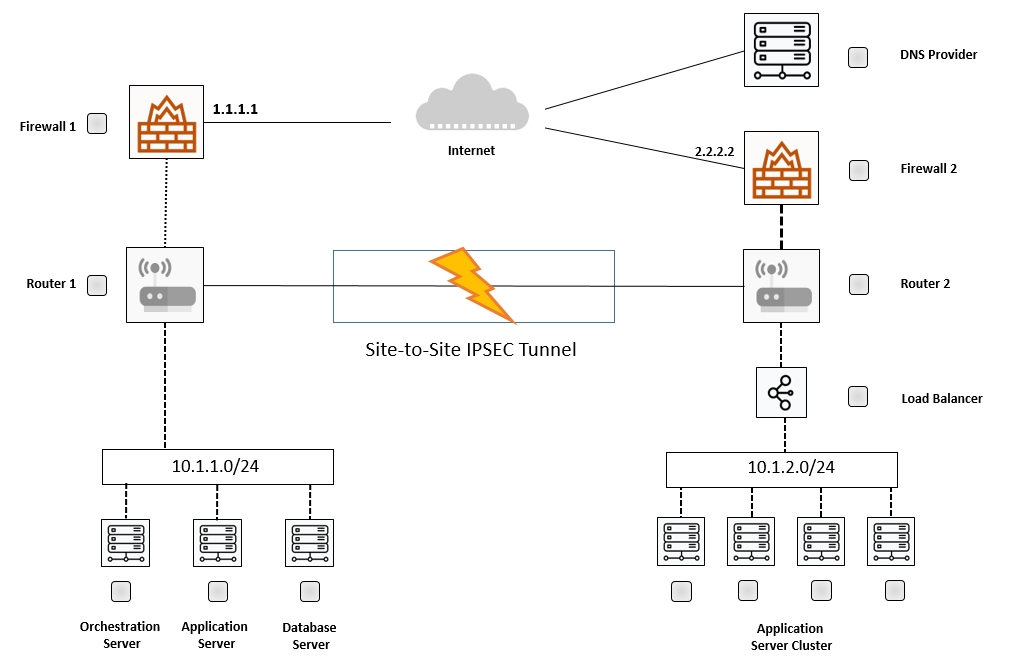

  Review the network architecture and supporting documents and fulfill these requirements:
  Part 1:

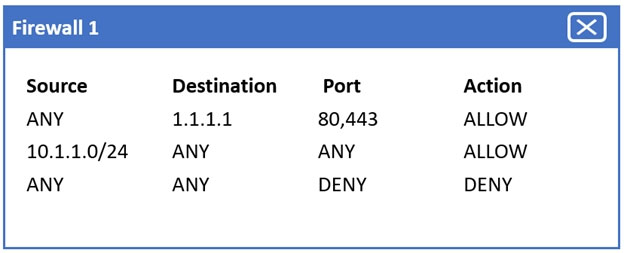

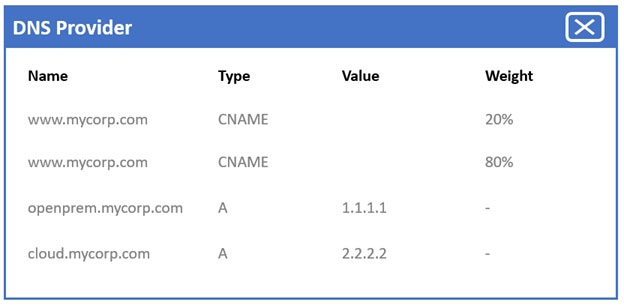

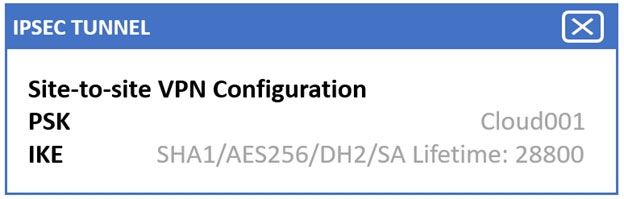

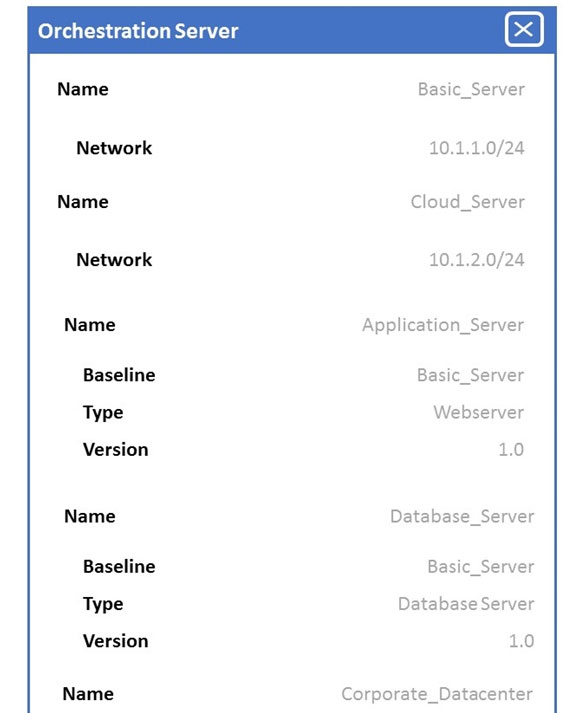

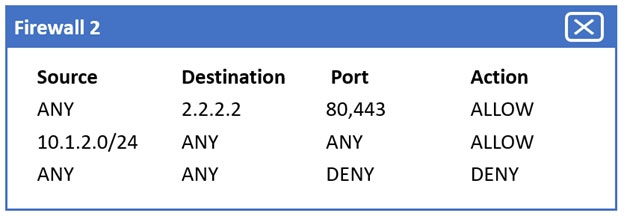

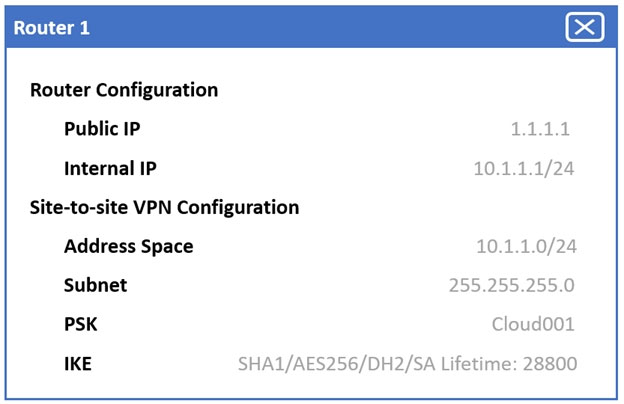

  ✑ Analyze the configuration of the following components: DNS, Firewall 1, Firewall 2, Router 1, Router 2, VPN and Orchestrator Server.
  ✑ Identify the problematic device(s).
  Part 2:
  ✑ Identify the correct options to provide adequate configuration for hybrid cloud architecture.
  If any time you would like to bring back the initial state of the simulation, please click the Reset All button.

  Part 1 -









  Part 2 -
  Only select a maximum of TWO options from the multiple choice question. (Choose two.)


  • A. Update the PSK (Pre-shared key) in Router 2.
  • B. Update the A record on the DNS from 2.2.2.2 to 1.1.1.1.
  • C. Promote deny All to allow All in Firewall 1 and Firewall 2.
  • D. Change the Address Space on Router 2.
  • E. Change internal IP Address of Router 1.
  • F. Reverse the Weight property in the two CNAME records on the DNS.
  • G. Add the Application Server at on-premises to the Load Balancer.

  Correct Answer: AD

  Explanation:

  Based on the question content, supporting documents (images), and the discussion summary, I agree with the suggested answer of A and D. Here's a breakdown of the reasoning:

  • A. Update the PSK (Pre-shared key) in Router 2: The problem states that only 20% of connections are successful. A mismatch in the pre-shared key (PSK) between Router 1 and Router 2 (the VPN endpoints) would cause intermittent connectivity issues and VPN tunnel failures, directly impacting the success rate of connections. Verifying and updating the PSK to ensure it matches on both ends of the VPN tunnel is crucial for establishing a stable and reliable connection.
  • D. Change the Address Space on Router 2: Examining the provided images, Router 1 uses address space 192.168.1.0/24 and Router 2 is configured with the same 192.168.1.0/24 address space. This overlapping address space will cause routing conflicts, where traffic cannot be properly directed between the on-premises network and the cloud environment, severely limiting connection success. Changing the address space on Router 2 to a non-overlapping range (e.g., 192.168.2.0/24) is necessary for proper routing.

  Here's why the other options are less likely to be the correct primary solutions:

  • B. Update the A record on the DNS from 2.2.2.2 to 1.1.1.1: The DNS configuration uses weighted round-robin. While ensuring DNS records are correct is important, the primary issue is not likely with the DNS records initially as the connectivity is only 20%. The main load takes place on the application server, which is why the company deployed additional application servers into a commercial cloud provider using the on-premises orchestration engine. If the VPN tunnel is not properly configured, the updated DNS records won't matter much.
  • C. Promote deny All to allow All in Firewall 1 and Firewall 2: Opening up all traffic is a security risk and is generally not the appropriate solution for troubleshooting connectivity issues. Firewalls should be configured with specific rules to allow necessary traffic while blocking everything else.
  • E. Change internal IP Address of Router 1: There's no immediate evidence to suggest that the IP address of Router 1 is the core issue. The configuration problem is located on Router 2.
  • F. Reverse the Weight property in the two CNAME records on the DNS: If the DNS records are correctly pointing to the appropriate servers, changing the weight will only affect the load balancing ratio, not the overall connectivity issue. As with Option B, if the VPN tunnel and routing are broken, adjusting DNS weights won't resolve the core problem.
  • G. Add the Application Server at on-premises to the Load Balancer: The scenario describes scaling the e-commerce application to the cloud, not adding the on-premises server to the load balancer. The problem lies in the connectivity between the on-premises network and the cloud environment.

  In conclusion, addressing the VPN tunnel configuration (PSK mismatch) and the overlapping address space are the most crucial steps to resolving the connectivity problems in this hybrid cloud architecture.

• Question 2

  An organization suffered a critical failure of its primary datacenter and made the decision to switch to the DR site. After one week of using the DR site, the primary datacenter is now ready to resume operations.
  Which of the following is the MOST efficient way to bring the block storage in the primary datacenter up to date with the DR site?


  • A. Set up replication.
  • B. Copy the data across both sites.
  • C. Restore incremental backups.
  • D. Restore full backups.

  Correct Answer: A

  Explanation:

  I agree with the suggested answer, which is A: Set up replication.
  Reasoning:
  Replication is the most efficient way to bring the block storage in the primary datacenter up to date with the DR site after a failover. Here's why:

  • It allows for the transfer of only the changes made at the DR site back to the primary datacenter.
  • It minimizes downtime and potential data loss.
  • It automatically keeps the primary and DR sites synchronized.

  The goal is to quickly and efficiently bring the primary datacenter back online with the most current data, and replication is designed for this purpose.
  Why other options are not the best:

  • B. Copying the data across both sites would be a manual and time-consuming process, especially for large block storage volumes. This method is prone to errors and is less efficient.
  • C. Restoring incremental backups would take longer as each incremental backup would need to be applied in order and may not cover the entire period.
  • D. Restoring full backups would also be less efficient than replication, as it would involve overwriting the entire block storage with an older version of the data. This would result in data loss.

  Therefore, setting up replication is the most efficient method for synchronizing the primary datacenter's block storage with the DR site.

• Question 3

  A cloud administrator is building a new VM for machine-learning training. The developer requesting the VM has stated that the machine will need a full GPU dedicated to it. Which of the following configuration options would BEST meet this requirement?


  • A. Virtual GPU
  • B. External GPU
  • C. Passthrough GPU
  • D. Shared GPU

  Correct Answer: C

  Explanation:

  I agree with the suggested answer, which is C. Passthrough GPU.

  Reasoning:
  The question explicitly states that the VM needs a "full GPU dedicated to it." Among the choices, only "Passthrough GPU" provides a dedicated GPU to the VM. GPU passthrough (also called PCI passthrough) directly assigns a physical GPU to a virtual machine. This configuration gives the VM exclusive access to the GPU’s resources, meeting the stated requirement perfectly. This approach is crucial for machine learning tasks that demand high performance and dedicated GPU resources.

  Why other options are not the best choice:

  • A. Virtual GPU: A virtual GPU (vGPU) splits a physical GPU into multiple virtual GPUs, which are then shared among multiple VMs. This does not provide a full, dedicated GPU.
  • B. External GPU: While an external GPU can provide significant processing power, it still requires a connection and driver support within the VM. It does not inherently guarantee a dedicated, full GPU assignment as efficiently as passthrough. It is not a configuration option in the same context as the others, which refer to how a GPU is allocated within a virtualized environment.
  • D. Shared GPU: A shared GPU, as the name implies, shares the GPU resources among multiple VMs, contradicting the requirement for a dedicated GPU.

• Question 4

  Which of the following service models would be used for a database in the cloud?


  • A. PaaS
  • B. IaaS
  • C. CaaS
  • D. SaaS

  Correct Answer: A

  Explanation:

  The best answer is A. PaaS.

  Reasoning:
  The question asks about the service model most suitable for a database in the cloud. Platform as a Service (PaaS) provides a comprehensive environment for developers to build, deploy, and manage applications, including databases, without managing the underlying infrastructure. This abstraction is ideal for database solutions in the cloud.


  • PaaS provides resources needed for cloud-based database. With PaaS, developers can focus on database design, optimization, and data management without concerning themselves with server maintenance, operating system updates, or hardware scaling.
  • Examples of PaaS database services include AWS RDS, Azure SQL Database, and Google Cloud SQL. These services offer managed database instances that handle many administrative tasks.

  Reasons for excluding other options:


  • IaaS (Infrastructure as a Service): While IaaS provides the foundational infrastructure (servers, storage, networking), it requires the user to manage the operating system, database software installation, patching, and backups. This is a less managed approach than PaaS.
  • CaaS (Containers as a Service): CaaS is primarily focused on managing containers. While databases can be containerized, CaaS itself doesn't offer the database-specific management features provided by PaaS.
  • SaaS (Software as a Service): SaaS delivers a complete software solution to the user. While some SaaS applications might include databases, the user doesn't directly manage the database component itself. The focus of SaaS is on the application's functionality, not on providing a database platform.

• Question 5

  A VDI administrator has received reports from the drafting department that rendering is slower than normal. Which of the following should the administrator check
  FIRST to optimize the performance of the VDI infrastructure?


  • A. GPU
  • B. CPU
  • C. Storage
  • D. Memory

  Correct Answer: A

  Explanation:

  Based on the question and discussion, I agree with the suggested answer A (GPU). The question specifically mentions that the drafting department is experiencing slower than normal rendering performance. Rendering is a graphics-intensive task, so the first component to check for optimization would be the GPU. The discussion highlights this, with the majority of comments agreeing that the GPU is the primary suspect in this scenario.

  Here's why the other options are less likely to be the first thing to check:

  • B. CPU: While the CPU plays a role in overall system performance, it's less directly involved in the rendering process compared to the GPU. If the problem is specifically rendering, the GPU is the more likely bottleneck.
  • C. Storage: Storage performance can affect loading times and overall application responsiveness, but it's less likely to be the primary cause of slow rendering.
  • D. Memory: Insufficient memory can certainly impact performance, but again, the GPU is the more direct factor in rendering speed. Checking memory usage would be a reasonable follow-up step, but not the first.

  The discussion also mentions the CompTIA Cloud+ Study Guide (Exam CV0-003) as a reference.

  • Citations:
  • Official CompTIA Cloud+ Study Guide (Exam CV0-003) - (Note: This is a general reference to a study guide; a specific URL is not available.)

• Question 6

  A Chief Information Security Officer (CISO) is evaluating the company's security management program. The CISO needs to locate all the assets with identified deviations and mitigation measures. Which of the following would help the CISO with these requirements?


  • A. An SLA document
  • B. A DR plan
  • C. SOC procedures
  • D. A risk register

  Correct Answer: D

  Explanation:

  I agree with the suggested answer, which is D. A risk register.

  Reasoning: A risk register is a crucial document for a CISO to evaluate a company's security management program. It serves as a centralized repository for identifying and documenting potential risks, their impact, likelihood, and, most importantly, the mitigation measures in place to address those risks. This allows the CISO to easily locate assets with identified deviations and understand the planned or implemented actions to reduce those risks.

  A risk register typically includes the following information for each identified risk (Citation 1):

  • Description of the risk
  • Asset at risk
  • Potential impact
  • Likelihood of occurrence
  • Mitigation measures
  • Risk owner
  • Status of mitigation

  Reasons for not choosing the other options:

  • A. An SLA document: A Service Level Agreement (SLA) outlines the level of service expected from a vendor or internal team. While it might touch upon security aspects, it doesn't comprehensively list all assets, deviations, and mitigation measures across the entire organization.
  • B. A DR plan: A Disaster Recovery (DR) plan focuses on restoring business operations after a disruptive event. While it's an important security document, it doesn't provide a comprehensive overview of all risks and mitigation measures.
  • C. SOC procedures: While SOC (Security Operations Center) procedures are essential for incident detection and response, they don't typically contain a consolidated list of all assets, identified deviations, and mitigation measures across the entire organization like a risk register does. The discussion content also highlights the ambiguity of the term "SOC procedures" and how it doesn't directly correlate with GRC or RMF functions.




  Therefore, a risk register directly addresses the CISO's need to locate all assets with identified deviations and mitigation measures, making it the most suitable choice.

  • Citations:
  • Citation 1: What is a Risk Register?, https://www.varonis.com/blog/risk-register

• Question 7

  A cloud engineer is responsible for managing a public cloud environment. There is currently one virtual network that is used to host the servers in the cloud environment. The environment is rapidly growing, and the network does not have any more available IP addresses. Which of the following should the engineer do to accommodate additional servers in this environment?


  • A. Create a VPC and peer the networks.
  • B. Implement dynamic routing.
  • C. Enable DHCP on the networks.
  • D. Obtain a new IPAM subscription.

  Correct Answer: A

  Explanation:

  Based on the question and discussion, I agree with the suggested answer A.
  The best solution is to create a new VPC and peer the networks. This is because the existing network has run out of IP addresses and needs to accommodate more servers.
  Reasoning:

  • Creating a new VPC provides a new, separate IP address space.
  • Peering the new VPC with the existing one allows the servers in both networks to communicate with each other as if they were on the same network.
  • This effectively expands the available IP address range without requiring a complete overhaul of the existing network infrastructure.

  Why other options are not suitable:

  • B. Implement dynamic routing: Dynamic routing helps manage traffic flow but does not solve the problem of insufficient IP addresses.
  • C. Enable DHCP on the networks: DHCP dynamically assigns IP addresses, but it doesn't create more addresses when the existing pool is exhausted.
  • D. Obtain a new IPAM subscription: An IPAM (IP Address Management) subscription helps manage and track IP addresses, but it doesn't inherently provide more IP addresses. While useful for managing IP addresses, it doesn't solve the immediate problem of a lack of available addresses.

• Question 8

  A system administrator is migrating a bare-metal server to the cloud. Which of the following types of migration should the systems administrator perform to accomplish this task?


  • A. V2V
  • B. V2P
  • C. P2P
  • D. P2V

  Correct Answer: D

  Explanation:

  I agree with the suggested answer.
  The correct answer is D. P2V (Physical to Virtual).

  Reasoning:
  P2V (Physical to Virtual) migration involves converting a physical server into a virtual machine. This is precisely the type of migration needed when moving a bare-metal server (a physical server) to the cloud, as the cloud environment utilizes virtual machines. The question describes a bare-metal server migration to the cloud; thus, converting the physical server into a virtual instance is necessary.

  Why other options are incorrect:


  • A. V2V (Virtual to Virtual): This involves migrating a virtual machine from one virtual environment to another. This does not apply since the starting point is a bare-metal server, not a virtual machine.
  • B. V2P (Virtual to Physical): This is the opposite of what the question describes. It involves migrating a virtual machine to a physical server.
  • C. P2P (Physical to Physical): This involves migrating from one physical server to another physical server. While it is a type of migration, it doesn't accomplish moving to the cloud, where virtualization is used.




  In summary, a system administrator should perform a P2V migration to move a bare-metal server to the cloud because it converts the physical server into a virtual machine suitable for the cloud environment.


  Citations:

  • Physical to Virtual (P2V), https://www.vmware.com/topics/glossary/content/physical-to-virtual-p2v

• Question 9

  A company is utilizing a private cloud solution that is hosted within its datacenter. The company wants to launch a new business application, which requires the resources below:

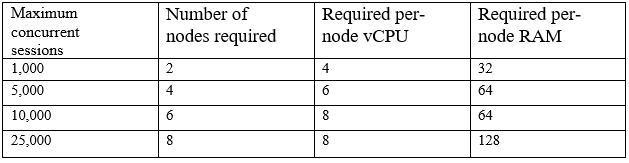

  The current private cloud has 30 vCPUs and 512GB RAM available. The company is looking for a quick solution to launch this application, with expected maximum sessions to be close to 24,000 at launch and an average of approximately 5,000 sessions. Which of the following solutions would help to company accommodate the new workload in the SHORTEST amount of time and with the maximum financial benefits?


  • A. Configure auto-scaling within the private cloud.
  • B. Set up cloud bursting for the additional resources.
  • C. Migrate all workloads to a public cloud provider.
  • D. Add more capacity to the private cloud.

  Correct Answer: B

  Explanation:

  Based on the scenario and discussion, I agree with the suggested answer, which is B. Set up cloud bursting for the additional resources.

  Reasoning:

  • Cloud bursting provides a rapid solution to accommodate the new workload by leveraging public cloud resources when the private cloud's capacity is insufficient. This aligns with the requirement for the shortest deployment time, as it avoids the delays associated with procuring and installing additional hardware in the private cloud (Option D) or migrating all workloads to a public cloud (Option C).
  • Cloud bursting offers financial benefits by allowing the company to pay for additional resources only when needed, rather than investing in permanent infrastructure upgrades or a full migration. Given the expected peak of 24,000 sessions at launch, cloud bursting is more economical than maintaining sufficient private cloud capacity for that peak.

  Reasons for not choosing other options:

  • A. Configure auto-scaling within the private cloud: Auto-scaling is unsuitable because the current private cloud lacks the necessary resources (vCPUs and RAM) to handle the initially estimated 24,000 sessions. Auto-scaling only works if you have enough existing resources.
  • C. Migrate all workloads to a public cloud provider: Migrating all workloads to the public cloud would take longer and could be more expensive than cloud bursting, especially if the majority of the workload can be handled by the private cloud most of the time. It doesn't align with the requirement for a quick solution and maximum financial benefits.
  • D. Add more capacity to the private cloud: While adding capacity to the private cloud is a viable option, it involves procurement, installation, and configuration, making it a slower solution than cloud bursting. Also, investing in additional private cloud infrastructure may not be financially optimal if the peak demand is temporary.


  Citations:

  • Cloud bursting, https://www.ibm.com/cloud/learn/cloud-bursting

• Question 10

  A cloud administrator is reviewing the authentication and authorization mechanism implemented within the cloud environment. Upon review, the administrator discovers the sales group is part of the finance group, and the sales team members can access the financial application. Single sign-on is also implemented, which makes access much easier. Which of the following access control rules should be changed?


  • A. Discretionary-based
  • B. Attribute-based
  • C. Mandatory-based
  • D. Role-based

  Correct Answer: D

  Explanation:

  I disagree with the suggested answer (D) and suggest answer (B) Attribute-based.
  Reasoning:
  The scenario describes a situation where the sales group is inadvertently inheriting access rights from the finance group due to their group membership and the existing single sign-on implementation. The core issue lies in how access is determined, as the sales team members should not have access to the financial application simply because they are part of the same group.

  Attribute-Based Access Control (ABAC) is the most suitable solution because it provides fine-grained control over access rights based on attributes of the user, the resource, and the environment. In this case, the administrator can define policies that explicitly deny sales team members access to the financial application, regardless of their group membership. By adjusting the attributes that define group membership or refining the access policies based on specific attributes such as job role or department, access can be precisely controlled.

  Why other options are incorrect:


  • A. Discretionary-based: This access control model places the authority to grant access in the hands of the resource owner, which is not suitable for centrally managed cloud environments where access needs to be consistently controlled.
  • C. Mandatory-based: This model is typically used in highly secure environments where access is determined by security clearances and classifications, which is not applicable to the scenario described.
  • D. Role-based: Role-based access control assigns permissions based on predefined roles. While it can manage access effectively, it does not provide the fine-grained control needed to differentiate access within groups. In this scenario, simply assigning roles may not prevent the sales team members from inheriting access from the finance group.

  Therefore, Attribute-Based Access Control (ABAC) allows for the necessary granularity to address the problem effectively.


  Citations:

  • Attribute-Based Access Control (ABAC), https://csrc.nist.gov/glossary/term/attribute-based-access-control
