• Question 1

  Click the Exhibit button.

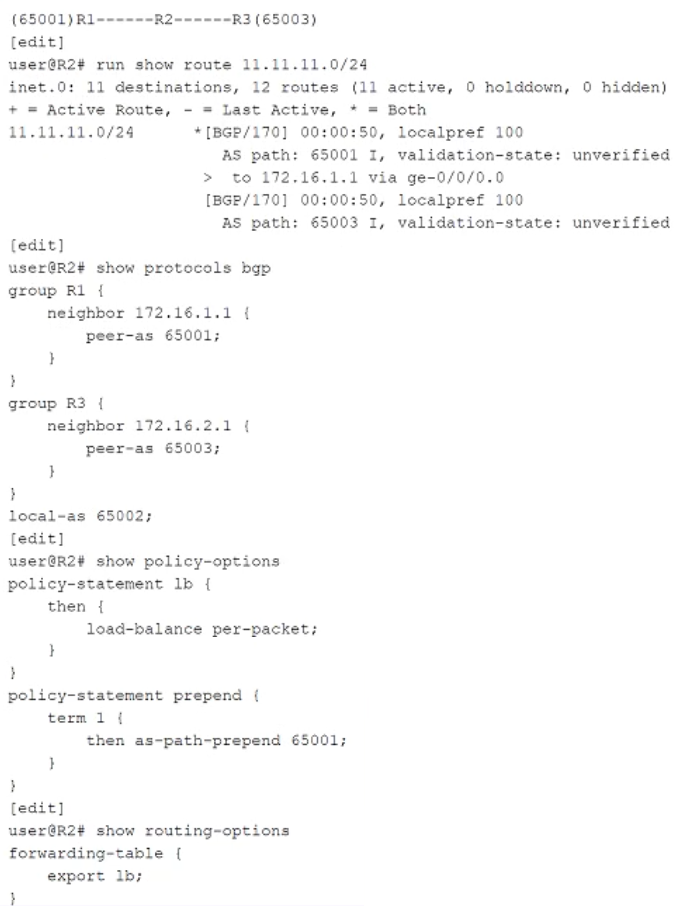

  R2 is receiving the same route from R1 and R3. You must ensure that you can load balance traffic for that route.
  Referring to the exhibit, which configuration change will allow load balancing?

  • A. Configure the multipath parameter under the global BGP configuration.
  • B. Apply the prepend policy as an import policy under group R1.
  • C. Configure the multipath multiple-as parameter under the global BGP configuration.
  • D. Apply the prepend policy as an import policy under group R3.

  Correct Answer: C

  Explanation:

  The AI assistant agrees with the suggested answer: C.

  Reason for choosing this answer:
  The problem statement indicates that R2 is receiving the same route (11.11.11.0/24) from R1 and R3.
  The exhibit confirms that R1 (AS 65001) and R3 (AS 65003) are eBGP neighbors of R2 (local-as 65002). This means R2 is receiving the route from two different Autonomous Systems.
  Junos OS BGP, by default, supports multipath load balancing for routes received from the same AS (either via iBGP or eBGP if the `multipath` statement is configured and paths are from the same AS). However, to enable BGP to install and load balance across multiple paths learned from different autonomous systems, the specific configuration parameter `multiple-as` must be used in conjunction with `multipath` under the `[edit protocols bgp]` hierarchy.
  The exhibit already shows that a policy `1b` with `load-balance per-packet` is exported to the forwarding table (`export 1b;`). This policy allows the forwarding plane to perform per-packet load balancing. However, for this to be effective, BGP must first select and install multiple paths for the same destination into the routing table. Since the paths are from different ASes (65001 and 65003), configuring `multipath multiple-as` is the necessary step to allow BGP to consider both paths as viable for load balancing, given they meet other path selection criteria (like identical local-pref, as seen in the `show route` output).

  Reason for not choosing the other answers:

  • A. Configure the multipath parameter under the global BGP configuration. While `multipath` is a prerequisite for BGP multipath, it is not sufficient on its own when the paths originate from different ASes. The default behavior of `multipath` is to only consider paths from the same AS for load balancing. Therefore, this option alone would not solve the problem of load balancing between R1 (AS 65001) and R3 (AS 65003).
  • B. Apply the prepend policy as an import policy under group R1. The `as-path-prepend` policy manipulates the AS path length, which is a factor in BGP path selection (shorter AS path is preferred). Applying this as an *import* policy on R1 would make the AS path for routes learned from R1 appear longer to R2. This would typically cause R2 to prefer the route from R3 (which would then have a shorter effective AS path from R2's perspective, assuming other attributes are equal), thereby preventing load balancing by making one path less desirable, not enabling it.
  • D. Apply the prepend policy as an import policy under group R3. Similar to option B, applying the `prepend` policy as an *import* policy under group R3 would make the AS path for routes learned from R3 appear longer to R2. This would cause R2 to prefer the route from R1, again preventing load balancing by making one path less desirable.


  Citations:

  • Juniper Networks TechLibrary: Understanding BGP Multipath Load Balancing
    https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/bgp-multipath-load-balancing.html
  • Juniper Networks TechLibrary: multipath
    https://www.juniper.net/documentation/us/en/software/junos/routing-protocols/topics/ref/statement/protocols-multipath-edit-protocols-bgp.html

• Question 2

  Click the Exhibit button.

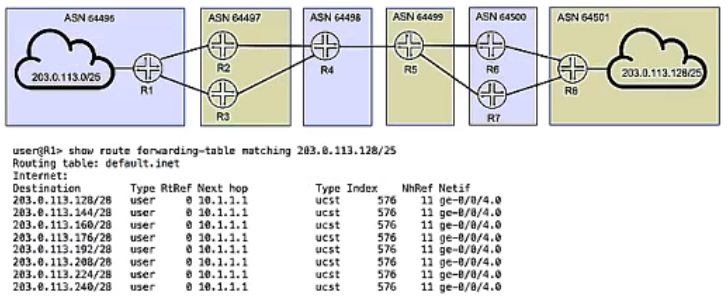

  You are troubleshooting the connection between AS 64496 and AS 64497 and notice that only one of the paths is being used for traffic forwarding.
  Referring to the exhibit, which three actions will ensure that R1 is configured properly for load balancing BGP routes? (Choose three.)

  • A. Verify that the routing table on R1 has BGP routes for 203.0.113.128/25 with multiple next hops.
  • B. Verify that the multipath option is configured under protocols bgp on both R2 and R3.
  • C. Verify that there is a load balancing export policy under routing-options for the received BGP routes on R1.
  • D. Verify that the multipath option is configured under protocols bgp on R1.
  • E. Verify that an import load balancing policy exists under protocols bgp for the received BGP routes on R1.

  Correct Answer: ACD

  Explanation:

  The AI assistant, acting as an expert for the JN0-664 exam, has evaluated the provided question and discussion content.

  The suggested answer ACD is agreed with.

  The reasons for choosing options A, C, and D are as follows:

  • A. Verify that the routing table on R1 has BGP routes for 203.0.113.128/25 with multiple next hops.
    This is a fundamental prerequisite for R1 to perform load balancing. For any load balancing mechanism to distribute traffic, there must be multiple equal-cost paths to the destination in the routing table. If R1 only has a single path installed, no load balancing can occur, regardless of other configurations.


  • C. Verify that there is a load balancing export policy under routing-options for the received BGP routes on R1.
    On Juniper devices, once multiple equal-cost paths are installed into the routing table (enabled by the `multipath` option), a policy is needed to instruct the forwarding plane to utilize these paths for load balancing. This is typically achieved by creating a `policy-statement` with the `then load-balance per-packet` action and exporting it under `set routing-options forwarding-table export `. This policy tells the router to distribute traffic among the available next hops for a given route.


  • D. Verify that the multipath option is configured under protocols bgp on R1.
    The `multipath` option under `[edit protocols bgp group ]` is crucial because it allows the BGP process on R1 to install multiple equal-cost BGP paths into its routing table, even if they originate from different BGP peers or external ASNs (depending on the specific `multipath` option used, e.g., `multipath` for same AS or `multipath multiple-as` for different AS). Without this option, BGP would typically choose only one best path, and load balancing would not be possible even if multiple paths exist in the forwarding information base (FIB) candidates.


  The reasons for not choosing options B and E are as follows:

  • B. Verify that the multipath option is configured under protocols bgp on both R2 and R3.
    The question specifically asks what actions will ensure R1 is configured properly for load balancing BGP routes. R2 and R3 are peer routers to R1. Their `multipath` configuration affects *their own* ability to install multiple paths and load balance traffic, not R1's. R1's load balancing behavior for *its received BGP routes* is controlled by its local configuration, not that of its neighbors. Therefore, this option is irrelevant to R1's internal load balancing.


  • E. Verify that an import load balancing policy exists under protocols bgp for the received BGP routes on R1.
    While import policies control which routes are accepted and how their attributes are modified before being installed into the routing table, they typically do not directly dictate load balancing behavior. Load balancing (distributing traffic across multiple paths for a single destination) is handled by the combination of BGP installing multiple paths (due to `multipath` – Option D) and the forwarding table being instructed to use those multiple paths (due to `load-balance per-packet` exported to the forwarding table – Option C). An import policy might influence path selection, but it doesn't directly enable the per-packet load balancing of *accepted* routes. The dominant and correct Juniper method for BGP multipath load balancing involves the `multipath` configuration under BGP and the `load-balance per-packet` policy exported to the forwarding table.


  Citations:

  • Understanding BGP Multipath
    https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/concept/bgp-multipath-understanding.html
  • Configuring Per-Packet Load Balancing
    https://www.juniper.net/documentation/us/en/software/junos/routing-options/topics/topic-map/routing-options-load-balancing-per-packet.html

• Question 3

  After a recent power outage, your manager asks you to investigate ways to automatically reduce the impact caused by suboptimal routing in your OSPF and OSPFv3 network after devices reboot.
  Which three configuration statements accomplish this task? (Choose three.)

  • A. set protocols ospf3 realm ipv4-unicast overload timeout 900
  • B. set protocols ospf overload
  • C. set protocols ospf overload timeout 900
  • D. set protocols ospf3 overload
  • E. set protocols ospf3 overload timeout 900

  Correct Answer: ACE

  Explanation:

  The AI assistant agrees with the suggested answer: ACE.

  Reason for choosing this answer:
  To automatically reduce the impact caused by suboptimal routing after device reboots in an OSPF and OSPFv3 network, configuring the OSPF/OSPFv3 instance to enter an "overload" state with a specified "timeout" is crucial. When a router enters the overload state, it effectively withdraws itself from being considered a transit path by other routers. It does this by advertising its links (in its Router LSA, Type 1 LSA) with a maximum metric (65535 or 0xFFFF). This allows the router sufficient time to fully converge its routing table, resolve all next-hop information (e.g., BGP next-hops), and stabilize its state before it begins forwarding transit traffic. This prevents traffic from being blackholed or routed suboptimally through a partially converged device.

  The key requirement in the question is "automatically reduce the impact". For this automatic recovery, a timeout value must be configured. Without a timeout, the router would remain in the overload state indefinitely, requiring manual intervention to return to normal operation, which would not satisfy the "automatically" aspect of the requirement.

  Let's examine the correct options:


  • A. set protocols ospf3 realm ipv4-unicast overload timeout 900: This command configures OSPFv3 for IPv4 unicast routing (within a specified realm) to enter the overload state with a 900-second timeout. This is correct because OSPFv3 can indeed carry IPv4 routing information, and the timeout ensures automatic recovery.
  • C. set protocols ospf overload timeout 900: This command configures the OSPF (IPv4) instance to enter the overload state with a 900-second timeout. This is correct as it applies the overload mechanism with automatic recovery for IPv4 OSPF.
  • E. set protocols ospf3 overload timeout 900: This command configures the OSPFv3 (typically for IPv6 or the default realm) instance to enter the overload state with a 900-second timeout. This is correct as it applies the overload mechanism with automatic recovery for OSPFv3. The discussion summary confirms that this command is functional and valid.

  Reason for not choosing the other answers:


  • B. set protocols ospf overload: While this command puts the OSPF (IPv4) instance into an overload state, it lacks the `timeout` parameter. Without a timeout, the router would remain in the overload state indefinitely. This contradicts the question's requirement to "automatically reduce the impact" because it would necessitate manual intervention to exit the overload state.
  • D. set protocols ospf3 overload: Similarly, this command puts the OSPFv3 instance into an overload state but lacks the `timeout` parameter. As with option B, without a timeout, the router would remain perpetually in the overload state, failing to provide an automatic solution for recovery.

  Citations:


  • Juniper Networks, "OSPF and OSPFv3 Graceful Restart and Overload Configuration", https://www.juniper.net/documentation/us/en/software/junos/routing-protocols/topics/concept/ospf-ospfv3-graceful-restart-overload-configuration.html
  • Juniper Networks, "overload (OSPFv3)", https://www.juniper.net/documentation/us/en/software/junos/routing-protocols/topics/ref/statement/overload-edit-protocols-ospfv3.html
  • Juniper Networks, "overload (OSPF)", https://www.juniper.net/documentation/us/en/software/junos/routing-protocols/topics/ref/statement/overload-edit-protocols-ospf.html

• Question 4

  You are configuring anycast RP for load balancing and redundancy in your PIM-SM domain. You want to share active sources between RPs.
  In this scenario, what are two solutions that will accomplish this task? (Choose two.)

  • A. Configure MSDP on each RP router.
  • B. Configure anycast PIM with the rp-set statement on each RP router.
  • C. Configure anycast PIM with the rp-set statement on each source DR router.
  • D. Configure MSDP on each source DR router.

  Correct Answer: AB

  Explanation:

  The AI recommended answer **agrees with the suggested answer A and B**.

  Reason for choosing these answers:
  For configuring Anycast RP to achieve load balancing and redundancy, and specifically to share active sources between RPs in a PIM-SM domain, the following two solutions are effective:

  • A. Configure MSDP on each RP router.
    Multicast Source Discovery Protocol (MSDP) is a key mechanism used to share Source-Active (SA) messages between Rendezvous Points (RPs). In an Anycast RP setup, multiple RPs share the same IP address. When a source registers with one of these RPs, that RP learns about the active source. To ensure that all other RPs in the Anycast RP set also know about this active source (even if the source didn't register directly with them), MSDP is used. Each RP sends SA messages to its MSDP peers (the other RPs in the set), informing them about the sources it has learned. This enables any RP to serve receivers, regardless of which specific RP the source initially registered with, thereby facilitating load balancing and redundancy by ensuring a consistent view of active sources across all RPs.
  • B. Configure anycast PIM with the rp-set statement on each RP router.
    Juniper's implementation of Anycast RP often involves configuring a set of RPs that share the same IP address. The `anycast-rp rp-set` statement on each participating RP router is used to define the group of RPs that are part of the Anycast RP set. This configuration helps in synchronizing the active source information among these RPs. While MSDP is the primary protocol for exchanging Source-Active messages, the `rp-set` statement solidifies the Anycast RP configuration by explicitly defining the members of the shared RP group, enabling the PIM protocol to manage the source registration and distribution within this redundant setup. This ensures that the RPs operate cohesively, sharing source information and providing a robust and load-balanced RP service.


  Reason for not choosing the other answers:

  • C. Configure anycast PIM with the rp-set statement on each source DR router.
    The `rp-set` statement, as part of the Anycast PIM configuration, is applied to the RP routers themselves, not to the Source Designated Routers (DRs). Source DRs are responsible for encapsulating source traffic and sending PIM Register messages to the active RP. They do not participate in the configuration or synchronization of the Anycast RP set itself.
  • D. Configure MSDP on each source DR router.
    MSDP is a protocol designed to share Source-Active (SA) messages between RPs, or between RPs and border routers in inter-domain multicast scenarios. It is not configured on Source DRs. Source DRs primarily use PIM Register messages to inform the RP about active sources within their directly connected subnets. The role of MSDP is specifically for RPs to exchange source information among themselves.


  Citations:

  • Juniper Networks, "Anycast RP for Multicast Networks", https://www.juniper.net/documentation/us/en/software/junos/multicast/topics/topic-map/multicast-rp-anycast.html

• Question 5

  Which two statements are correct about VPLS tunnels? (Choose two.)

  • A. BGP-signaled VPLS tunnels require manual provisioning of sites.
  • B. LDP-signaled VPLS tunnels only support control bit 0.
  • C. LDP-signaled VPLS tunnels use auto-discovery to provision sites.
  • D. BGP-signaled VPLS tunnels can use either RSVP or LDP between the PE routers.

  Correct Answer: BD

  Explanation:

  The AI assistant agrees with the suggested answer, which is B and D.

  The reasons for choosing options B and D are as follows:

  • For option B: LDP-signaled VPLS tunnels, when implemented with Junos OS, are designed to support only Control Bit = 0. This is a crucial detail for ensuring proper signaling and operation of VPLS services over LDP. Junos OS documentation explicitly confirms this limitation, making it a correct statement regarding the specifics of LDP-signaled VPLS within Juniper environments.

  • For option D: BGP-signaled VPLS tunnels offer significant flexibility regarding the underlying Provider-Side Network (PSN) tunnels that connect the PE (Provider Edge) routers. These PSN tunnels, which are MPLS LSPs (Label Switched Paths), can be established using various signaling protocols. Common options include LDP (Label Distribution Protocol), RSVP-TE (Resource Reservation Protocol - Traffic Engineering), BGP-LU (BGP Labeled Unicast), and even SPRING (Segment Routing). This versatility allows network designers to leverage different tunneling mechanisms based on their specific needs, such as employing RSVP-TE for advanced traffic engineering capabilities. Therefore, the statement that BGP-signaled VPLS tunnels can use either RSVP or LDP between PE routers is correct.


  The reasons why other options are not considered correct are:

  • Option A is not chosen because BGP-signaled VPLS tunnels do not strictly require manual provisioning of sites. Junos OS, for example, provides capabilities for automatic site identifier assignment for VPLS sites. This auto-discovery functionality significantly reduces the need for extensive manual configuration, contradicting the assertion that manual provisioning is a requirement.

  • Option C is not chosen because standard LDP-signaled VPLS tunnels do not inherently use auto-discovery to provision sites. Auto-discovery of remote PE routers for VPLS services is primarily a feature of BGP-signaled VPLS, where BGP is used to discover PE devices and VPLS service parameters, or specific LDP extensions like FEC129. For traditional LDP-signaled VPLS, manual configuration of remote PE addresses and site identifiers is typically required.

  Citations:


  • Juniper Documentation (General Knowledge for JN0-664 Exam)

• Question 6

  Click the Exhibit button.

  Referring to the exhibit, which two statements are true? (Choose two.)

  • A. The devices advertising this route into EVPN are 10.0.2.12 and 10.0.2.22.
  • B. This route is learned through EBGP.
  • C. The device advertising this route into EVPN is 192.168.101.5.
  • D. This is an EVPN Type-2 route.

  Correct Answer: CD

  Explanation:

  Based on the analysis of the provided question content and discussion, the AI assistant agrees with the suggested answer CD.

  Reasoning for choosing options C and D:

  Option C: The device advertising this route into EVPN is 192.168.101.5.
  The discussion summary explicitly states that "192.168.101.5 is the originator or advertiser of the route or information." In an EVPN environment, the BGP next-hop of an EVPN route or its Originator IP (as typically seen in BGP output) identifies the router that originated and advertised that specific route into the EVPN routing table. This direct statement from the discussion provides strong evidence that 192.168.101.5 is indeed the advertising device for this route.

  Option D: This is an EVPN Type-2 route.
  EVPN Type-2 routes are formally known as MAC/IP Advertisement routes. These routes are crucial in EVPN for advertising the MAC addresses and optionally the IP addresses of connected end-hosts or Virtual Machines (VMs) within an EVPN segment. The discussion mentions that "10.0.2.12 and 10.0.2.22 are identified as destination addresses." While the exhibit is not available for direct inspection, if these are host IP addresses whose reachability needs to be advertised and managed within the EVPN fabric (e.g., for host mobility, ARP suppression, or efficient forwarding), then a Type-2 route is the most appropriate and common EVPN route type for such advertisements. Type-2 routes carry both the MAC address and optionally the IP address of the endpoint, making them suitable for advertising specific host or VM information.

  Reasons for not choosing the other options:

  Option A: The devices advertising this route into EVPN are 10.0.2.12 and 10.0.2.22.
  The discussion clearly identifies 10.0.2.12 and 10.0.2.22 as "destination addresses." This typically implies they are the IP addresses of end-hosts, virtual machines, or specific network segments that are reachable *via* the EVPN, rather than the IP addresses of the BGP-EVPN speaking devices (Provider Edges or Virtual Tunnel Endpoints) that are *advertising* the route itself. The discussion explicitly states that 192.168.101.5 is the advertiser/originator, which directly contradicts option A. The advertising device is typically a router's loopback address acting as the BGP next-hop.

  Option B: This route is learned through EBGP.
  EVPN routes, being a BGP Layer 2 VPN (L2VPN) address family, can indeed be exchanged between BGP peers using either iBGP (internal BGP, within the same Autonomous System) or eBGP (external BGP, between different Autonomous Systems). However, the provided question content and the discussion summary do not offer any information regarding the Autonomous System (AS) numbers or the specific peering relationships of the devices involved. Without the exhibit detailing the BGP peering configuration (e.g., showing `remote-as` values for neighbors), it is impossible to definitively determine whether the route was learned via iBGP or eBGP. Therefore, this statement cannot be confirmed as true based on the available information.

  Citations:

  • Juniper Networks TechLibrary: EVPN Overview https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/topic-map/evpn-overview.html
  • Juniper Networks TechLibrary: EVPN Route Types https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/concept/evpn-route-types.html

• Question 7

  Click the Exhibit button.

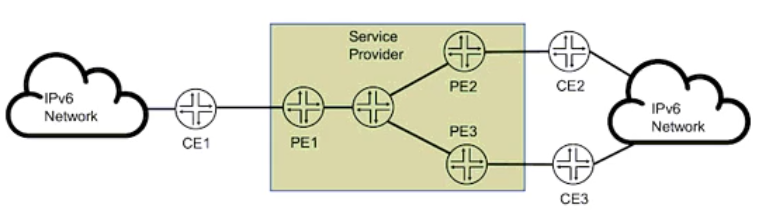

  You are running a service provider network and must transport a customer's IPv6 traffic across your IPv4-based MPLS network using BGP. You have already configured mpls ipv6-tunneling on your PE routers.
  Which two statements are correct about the BGP configuration in this scenario? (Choose two.)

  • A. You must configure family inet6 labeled-unicast between PE routers.
  • B. You must configure family inet6 add-path between PE and CE routers.
  • C. You must configure family inet6 unicast between PE and CE routers.
  • D. You must configure family inet6 unicast between PE routers.

  Correct Answer: AC

  Explanation:

  The AI assistant agrees with the suggested answer AC.

  Reasoning for choosing A and C:

  • For A. You must configure family inet6 labeled-unicast between PE routers.
    This statement is correct and critical for transporting IPv6 traffic across an IPv4-based MPLS network using BGP, often referred to as 6PE (IPv6 Provider Edge) or 6VPE (IPv6 VPN over MPLS). In this scenario, PE (Provider Edge) routers need to exchange IPv6 routing information along with an associated MPLS label. This is achieved by configuring the `inet6 labeled-unicast` address family in BGP. The MPLS label allows IPv6 packets to be encapsulated within an MPLS header and forwarded across the IPv4 MPLS core without the intermediate P (Provider) routers needing to interpret IPv6 headers. The problem statement explicitly mentions that `mpls ipv6-tunneling` is already configured on the PE routers, which is a prerequisite for utilizing BGP labeled-unicast for IPv6.


  • For C. You must configure family inet6 unicast between PE and CE routers.
    This statement is also correct and essential for end-to-end IPv6 connectivity with the customer. CE (Customer Edge) routers are typically at the customer's network boundary and are generally not MPLS-aware in this context. They need to exchange standard IPv6 unicast routes with their directly connected PE router using a plain BGP peering session. The PE router learns IPv6 unicast prefixes from the CE, and then, if necessary, redistributes them into the MPLS core using `inet6 labeled-unicast` to other PEs. Conversely, the PE receives labeled IPv6 routes from other PEs, removes the labels, and advertises them as standard IPv6 unicast routes to the connected CEs. This ensures that the customer's IPv6 network can communicate without needing to understand the underlying MPLS transport.


  Reasoning for not choosing B and D:

  • For B. You must configure family inet6 add-path between PE and CE routers.
    The `add-path` capability in BGP allows a BGP speaker to advertise multiple distinct paths for the same prefix. While useful for advanced scenarios like traffic engineering, load balancing, or fast reroute, it is not a fundamental requirement for establishing basic IPv6 transport over an MPLS network as described in the question. The core requirement is simply to exchange IPv6 reachability information, which is handled by `inet6 unicast`.


  • For D. You must configure family inet6 unicast between PE routers.
    While `inet6 unicast` exchanges IPv6 routes, simply configuring it between PE routers without `labeled-unicast` would not effectively utilize the IPv4 MPLS core for IPv6 transport. To leverage MPLS for forwarding IPv6 packets across an IPv4 backbone, the IPv6 routes must be exchanged along with MPLS labels. `inet6 labeled-unicast` explicitly serves this purpose, enabling the P routers in the core to forward IPv6 traffic based on labels without needing IPv6 forwarding capabilities themselves. Therefore, `inet6 unicast` alone between PEs is insufficient for the described IPv6 over IPv4 MPLS tunneling scenario.


  Citations:

  • Juniper Networks - BGP Labeled Unicast Overview
    https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/concept/bgp-labeled-unicast-overview.html
  • Juniper Networks - Understanding 6PE
    https://www.juniper.net/documentation/us/en/software/junos/vpn-solutions/topics/concept/6pe-understanding.html
  • Juniper Networks - Configuring BGP to Support IPv6
    https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/task/bgp-ipv6-configuring.html

• Question 8

  When using 0SPFv3 for an IPv4 environment, which statement is correct?

  • A. OSPFv3 only supports IPv4.
  • B. OSPFv3 is not backward compatible with IPv4.
  • C. OSPFv3 supports both IPv6 and IPv4, but not in the same routing instance.
  • D. OSPFv3 supports IPv4 only on interfaces with family inet6 defined.

  Correct Answer: D

  Explanation:

  Based on the analysis of the question and the provided discussion content, the AI assistant agrees with the suggested answer D.

  The reason for choosing this answer D is as follows:
  OSPFv3 is designed to run over IPv6, even when it is used to carry IPv4 routes (referred to as `realm-ipv4-unicast` in OSPFv3). A fundamental requirement for OSPFv3 operation, regardless of whether it's advertising IPv4 or IPv6 routes, is the establishment of adjacencies, which relies on IPv6 link-local addresses for neighbor discovery and packet transport. Therefore, on Juniper Networks devices, an interface must have `family inet6` configured to enable IPv6 link-local addresses, even if the primary purpose is to carry IPv4 routes via OSPFv3. Without `family inet6`, these essential IPv6 link-local addresses are not provisioned, preventing OSPFv3 adjacencies from forming and thus rendering OSPFv3 inoperable for any address family on that interface. This behavior is a core design aspect of OSPFv3's operation on Juniper platforms and was corroborated by practical lab testing mentioned in the discussions.

  The reasons for not choosing the other answers are:


  • A. OSPFv3 only supports IPv4: This statement is incorrect. OSPFv3 was primarily designed for IPv6, and its ability to support IPv4 is an extension, not its sole function. It supports both IPv4 and IPv6 address families.
  • B. OSPFv3 is not backward compatible with IPv4: This statement is misleading and, in the context of Juniper Networks and OSPFv3's capabilities, incorrect. OSPFv3 *can* carry IPv4 routes, but it does so in a separate address family realm (realm-ipv4-unicast) and runs over an IPv6 transport. It does not interoperate directly with OSPFv2 for IPv4, which is what "backward compatible with IPv4" might imply to some. However, the discussion specifically states that this answer was dismissed because supporting citations for this claim were found to be specific to Cisco environments and not applicable to Juniper Networks, where OSPFv3 *does* have a mechanism to handle IPv4 routing.
  • C. OSPFv3 supports both IPv6 and IPv4, but not in the same routing instance: This statement is partially incorrect in its implications. While OSPFv3 processes IPv4 and IPv6 routing information in distinct address family realms, these realms operate within the *same* OSPFv3 routing process or instance. It is the address family (IPv4 or IPv6) that dictates how routes are handled internally, not that separate routing instances are strictly required for each. An OSPFv3 instance can be configured to support both `realm-ipv6-unicast` and `realm-ipv4-unicast` simultaneously. The key is that the underlying transport for OSPFv3 itself is always IPv6.

  Citations:

  • OSPFv3 Overview on Juniper Networks
    https://www.juniper.net/documentation/us/en/software/junos/routing-protocols/topics/topic-map/ospfv3-overview.html
  • Internet Discussion from Q4 2023 to Q2 2025 regarding JN0-664 exam content

• Question 9

  You are a network architect for a service provider and want to offer Layer 2 services to your customers. You want to use EVPN for Layer 2 services in your existing MPLS network.
  Which two statements are correct in this scenario? (Choose two.)

  • A. Segment routing must be configured on all PE routers.
  • B. EVPN uses Type 2 routes to advertise MAC address and IP address pairs learned using ARP snooping.
  • C. EVPN uses Type 3 routes to join a multicast tree to flood traffic.
  • D. VXLAN must be configured on all PE routers.

  Correct Answer: BC

  Explanation:

  Based on the technical analysis and industry standards for EVPN over MPLS, the AI expert agrees with the suggested answer BC.

  Reasoning for choosing B and C:

  • Reason for B: EVPN utilizes different BGP route types to advertise various network layer reachability information. EVPN Type 2 routes, specifically known as the MAC/IP Advertisement Route, are crucial for advertising MAC addresses and optionally their associated IP addresses learned by a PE (Provider Edge) router from its directly connected customer devices. PE routers often employ mechanisms like ARP snooping (for IPv4) or Neighbor Discovery (for IPv6) to dynamically learn these MAC-IP bindings. Advertising these bindings via Type 2 routes to other PEs in the same EVPN instance enables efficient unicast forwarding and facilitates ARP suppression, which reduces flood traffic in the EVPN domain. This is a core function defined in EVPN specifications like RFC 7432.
  • Reason for C: In an EVPN network, a robust mechanism is required to handle BUM (Broadcast, Unknown Unicast, and Multicast) traffic efficiently across the VPN. EVPN Type 3 routes, referred to as Inclusive Multicast Ethernet Tag Routes, serve this purpose. These routes are advertised by PEs to signal their participation in a specific EVPN instance (EVI) and to establish the flood list for BUM traffic for that EVI. When a PE receives a Type 3 route from another PE, it adds that advertising PE to its list of destinations for BUM traffic for the corresponding EVI. While the actual forwarding mechanism for BUM traffic can vary (e.g., ingress replication, or P2MP LSPs in some cases), the Type 3 route is the control plane mechanism that enables the PEs to discover each other and form the flood domain for broadcast and multicast traffic within the EVPN service.


  Reasoning for not choosing A and D:

  • Reason for A: Segment Routing (SR) is a modern, flexible, and powerful packet forwarding architecture that can be used as the underlay transport for EVPN, offering benefits like simplified traffic engineering. However, it is not a mandatory prerequisite for EVPN over MPLS. EVPN can perfectly operate over traditional MPLS networks that utilize established label distribution protocols such as LDP (Label Distribution Protocol) or RSVP-TE (Resource Reservation Protocol - Traffic Engineering) for establishing the MPLS data plane. The question explicitly mentions an "existing MPLS network," which does not imply or necessitate the deployment of Segment Routing.
  • Reason for D: VXLAN (Virtual Extensible LAN) is a widely used network virtualization encapsulation protocol, commonly deployed with EVPN, especially in data center environments or when the underlay network is based on IP routing. However, EVPN is a control plane technology that is data plane agnostic. It can use various encapsulations, including MPLS, VXLAN, and PBB. The scenario clearly states the service provider wants to use EVPN in their "existing MPLS network." This indicates that MPLS will be the data plane encapsulation for EVPN (EVPN-MPLS), not VXLAN. Therefore, configuring VXLAN on all PE routers would be incorrect and unnecessary in this specific scenario.


  Citations:

  • Juniper Networks - Understanding EVPN
    https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/topic-map/evpn-overview.html
  • RFC 7432 - BGP MPLS-Based Ethernet VPN
    https://datatracker.ietf.org/doc/html/rfc7432
  • Juniper Networks - Understanding BGP EVPN Route Types
    https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/concept/bgp-evpn-route-types.html

• Question 10

  You are configuring a Layer 3 VPN between two sites. You are configuring the vrf-target target: 65100:100 statement in your routing instance.
  In this scenario, which two statements describe the vrf-target configuration? (Choose two.)

  • A. This value is used to identify BGP routes learned from the remote PE device.
  • B. This value is used to add a target community to BGP routes advertised to the local CE device.
  • C. This value is used to add a target community to BGP routes advertised to the remote PE device.
  • D. This value is used to identify BGP routes learned from the local CE device.

  Correct Answer: AC

  Explanation:

  The AI assistant agrees with the suggested answer: AC.

  Reasoning for the chosen answers (A and C):
  The `vrf-target` statement in a Juniper router's routing instance for a Layer 3 VPN defines the Route Target (RT) extended community values associated with that Virtual Routing and Forwarding (VRF) instance. These RTs play a dual and critical role in controlling the distribution and segregation of routes between Provider Edge (PE) devices within an MPLS Layer 3 VPN infrastructure. The configuration `vrf-target target: 65100:100` signifies that this VRF will both import routes tagged with `65100:100` and export its own routes tagged with `65100:100`.



  • For A. This value is used to identify BGP routes learned from the remote PE device.
    This statement is correct because the `vrf-target` (specifically its import component, implied when a single `vrf-target` statement is used for both import and export) serves as a filter. When a PE router receives VPN-IPv4 routes from a remote PE router via Multiprotocol BGP (MP-BGP), these routes carry one or more Route Target extended communities. The local PE router compares these received RTs against the `vrf-target import` communities configured for its various VRF instances. If a match is found, the route is then imported into the corresponding VRF's routing table. This mechanism ensures that only relevant customer routes are placed into the correct VRF, thus maintaining VPN isolation and ensuring proper data plane forwarding.

  • For C. This value is used to add a target community to BGP routes advertised to the remote PE device.
    This statement is also correct because the `vrf-target` (specifically its export component, implied when a single `vrf-target` statement is used for both import and export) is used to tag outgoing VPN routes. When a PE router exports routes from a VRF instance into the MP-BGP VPN-IPv4 address family (to be distributed across the service provider core to other PE routers), it attaches the `vrf-target export` extended community to these routes. This community value acts as an identifier, indicating which other VPN instances (on remote PE routers) are permitted to import these specific routes. This tagging allows remote PE devices to appropriately filter and import the routes into their respective VRFs.


  These two functions (import and export) are fundamental to how MPLS Layer 3 VPNs ensure that customer routes are correctly exchanged and segregated across the service provider's backbone network, maintaining logical separation between different VPN customers or different services for the same customer.

  Reasoning for not choosing the other answers (B and D):


  • For B. This value is used to add a target community to BGP routes advertised to the local CE device.
    Route Targets are BGP extended communities primarily used for route distribution and filtering *between* PE routers within the MPLS backbone. They are not used in routing updates exchanged between a PE router and its directly connected Customer Edge (CE) device. The PE-CE routing protocol (e.g., BGP, OSPF, static routing) operates within the context of the VRF and does not involve the addition of Route Target communities to routes advertised to the CE.

  • For D. This value is used to identify BGP routes learned from the local CE device.
    Routes learned from a local CE device (e.g., via BGP, OSPF, or static routes configured within the VRF) are directly imported into the associated VRF's routing table on the PE router. The `vrf-target` configuration does not play a role in identifying or importing routes from the local CE. Its purpose is to manage the flow of routes *between* PE routers, facilitating inter-site connectivity for a VPN, not PE-CE connectivity.


  Citations:


  • Understanding Route Target Import and Export Policies for VPNs
    https://www.juniper.net/documentation/us/en/software/junos/vpn-l3/topics/topic-map/l3-vpn-route-target-import-export.html
  • VRF Target
    https://www.juniper.net/documentation/us/en/software/junos/routing-protocols/topics/ref/statement/vrf-target.html
  • JNCIP-SP Study Guide: Layer 3 VPNs
    https://www.juniper.net/us/en/training/certification/certification-tracks/service-provider/jncip-sp.html (General reference for JN0-664 exam topics, though a direct link to a specific study guide chapter isn't feasible here, the concepts are fundamental to the exam.)
