[Mulesoft] Mulesoft - MCIA_-_Level_1 Exam Dumps & Study Guide
The MuleSoft Certified Integration Architect (MCIA) - Level 1 is the premier certification for professionals who design and manage integration solutions using the MuleSoft Anypoint Platform. As organizations increasingly adopt API-led connectivity to drive their digital transformation, the ability to design robust, scalable, and secure integration architectures has become a highly sought-after skill. The MuleSoft certification validates your expertise in leveraging the Anypoint Platform to build and manage a comprehensive application network. It is an essential credential for any professional looking to lead in the age of modern integration engineering.
Overview of the Exam
The MCIA Level 1 certification exam is a rigorous assessment that covers the design of integration solutions on the Anypoint Platform. It is a 120-minute exam consisting of 58 multiple-choice questions. The exam is designed to test your knowledge of the Anypoint Platform and your ability to apply it to real-world integration scenarios. From API-led connectivity and application network design to security, performance, and management, the certification ensures that you have the skills necessary to build and maintain modern integration architectures. Achieving the MuleSoft certification proves that you are a highly skilled professional who can handle the technical demands of enterprise-grade integration engineering.
Target Audience
The MCIA Level 1 certification is intended for integration architects and developers who have a deep understanding of the Anypoint Platform. It is ideal for individuals in roles such as:
1. Integration Architects
2. Solutions Architects
3. Senior Integration Developers
4. Technical Leads
To be successful, candidates should have at least one to two years of hands-on experience in using the Anypoint Platform for advanced integration tasks and a thorough understanding of MuleSoft's products and features.
Key Topics Covered
The MCIA Level 1 certification exam is organized into several main domains:
1. API-led Connectivity: Understanding the core concepts of API-led connectivity and the application network.
2. Anypoint Platform Architecture: Understanding the core components of the Anypoint Platform, including Runtime Manager and API Manager.
3. Design and Governance: Designing and governing APIs and integration solutions.
4. Security and Reliability: Ensuring the security and reliability of integration solutions.
5. Deployment and Monitoring: Deploying and monitoring integration solutions using various tools.
Benefits of Getting Certified
Earning the MuleSoft MCIA Level 1 certification provides several significant benefits. First, it offers industry recognition of your specialized expertise in MuleSoft technologies. As a leader in the integration industry, MuleSoft skills are in high demand across the globe. Second, it can lead to increased career opportunities and higher salary potential in a variety of roles. Third, it demonstrates your commitment to professional excellence and your dedication to staying current with the latest integration practices. By holding this certification, you join a global community of MuleSoft professionals and gain access to exclusive resources and continuing education opportunities.
Why Choose NotJustExam.com for Your MuleSoft Prep?
The MCIA Level 1 certification exam is challenging and requires a deep understanding of MuleSoft's complex features and integration concepts. NotJustExam.com is the best resource to help you master this material. Our platform offers an extensive bank of practice questions that are designed to mirror the actual exam’s format and difficulty.
What makes NotJustExam.com stand out is our focus on interactive logic and the accuracy of our explanations. We don’t just provide a list of questions; we provide a high-quality learning experience. Every question in our bank includes an in-depth, accurate explanation that helps you understand the technical reasoning behind the correct integration solutions. This ensures that you are truly learning the material and building the confidence needed to succeed on the exam. Our content is regularly updated to reflect the latest MuleSoft features and exam updates. With NotJustExam.com, you can approach your MCIA Level 1 exam with the assurance that comes from thorough, high-quality preparation. Start your journey toward becoming a Certified Integration Architect today with us!
Free [Mulesoft] Mulesoft - MCIA_-_Level_1 Practice Questions Preview
-
Question 1
A global organization operates datacenters in many countries. There are private network links between these datacenters because all business data (but NOT metadata) must be exchanged over these private network connections.
The organization does not currently use AWS in any way.
The strategic decision has just been made to rigorously minimize IT operations effort and investment going forward.
What combination of deployment options of the Anypoint Platform control plane and runtime plane(s) best serves this organization at the start of this strategic journey?
- A. MuleSoft-hosted Anypoint Platform control plane CloudHub Shared Worker Cloud in multiple AWS regions
- B. MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in multiple AWS regions
- C. MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in each datacenter
- D. Anypoint Platform - Private Cloud Edition Customer-hosted runtime plane in each datacenter
Correct Answer:
C
Explanation:
The AI agrees with the suggested answer, which is C. MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in each datacenter.
The reasoning for this choice is that it aligns with the organization's strategic goal to minimize IT operations effort and investment, while also adhering to the requirement that business data is exchanged over private network connections. By hosting the runtime plane in each datacenter, the organization can leverage its existing infrastructure and private network links. The MuleSoft-hosted control plane further reduces operational overhead.
The reasons for not choosing the other options are as follows:
- Option A, MuleSoft-hosted Anypoint Platform control plane CloudHub Shared Worker Cloud in multiple AWS regions, introduces a dependency on AWS, which the organization currently avoids and aims to minimize future investment in. Also, storing all business data within the CloudHub raises security and regulatory concerns.
- Option B, MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in multiple AWS regions, similarly introduces an AWS dependency, conflicting with the strategic decision to minimize IT investment.
- Option D, Anypoint Platform - Private Cloud Edition Customer-hosted runtime plane in each datacenter, increases IT complexity and operational overhead, as it requires the organization to manage the entire Anypoint Platform, including the control plane.
Therefore, option C provides the best balance between minimizing operational effort, leveraging existing infrastructure, and maintaining data privacy.
Detailed Reasoning:
The question emphasizes minimizing IT operations effort and investment while ensuring business data (not metadata) is exchanged over private network connections. This effectively rules out options that rely heavily on new infrastructure or increase operational complexity.
- Option A (CloudHub): While CloudHub is a fully managed service, it inherently means data will be transmitted over the public internet to AWS. The question states that all business data must be exchanged over private network connections, which CloudHub does not satisfy.
- Option B (Customer-hosted runtime in AWS): This option introduces AWS dependency. It does not align with the business context.
- Option C (Customer-hosted runtime in each datacenter): This is the most suitable choice. The organization already has datacenters and private network links between them. By hosting the runtime plane (Mule instances) in each datacenter, data exchange remains within the private network. The MuleSoft-hosted control plane simplifies management.
- Option D (Anypoint Platform - Private Cloud Edition): While this allows complete control, it significantly increases operational overhead. The organization would be responsible for managing the entire Anypoint Platform infrastructure, including the control plane, which contradicts the goal of minimizing IT effort.
Citations:
- MuleSoft Anypoint Platform Deployment Options, https://docs.mulesoft.com/runtime-manager/deploying-to-cloudhub
-
Question 2
Anypoint Exchange is required to maintain the source code of some of the assets committed to it, such as Connectors, Templates, and API specifications.
What is the best way to use an organization's source-code management (SCM) system in this context?
- A. Organizations need to point Anypoint Exchange to their SCM system so Anypoint Exchange can pull source code when requested by developers and provide it to Anypoint Studio
- B. Organizations need to use Anypoint Exchange as the main SCM system to centralize versioning and avoid code duplication
- C. Organizations can continue to use an SCM system of their choice for branching and merging, as long as they follow the branching and merging strategy enforced by Anypoint Exchange
- D. Organizations should continue to use an SCM system of their choice, in addition to keeping source code for these asset types in Anypoint Exchange, thereby enabling parallel development, branching, and merging
Correct Answer:
D
Explanation:
The AI agrees with the suggested answer, which is D.
The best approach is for organizations to continue using their existing Source Code Management (SCM) system while also utilizing Anypoint Exchange for asset storage. This allows for parallel development, branching, and merging, which are essential for efficient software development. Anypoint Exchange is primarily a repository and discovery platform for APIs, connectors, and templates, not a full-fledged SCM system.
Here's why the other options are less suitable:
- Option A: It is impractical and inefficient to have Anypoint Exchange directly pulling source code from organization's SCM. Anypoint Exchange is not designed to be an SCM client.
- Option B: Anypoint Exchange is not designed or intended to be a primary SCM system. It lacks the version control and collaboration features of dedicated SCM tools like Git.
- Option C: Anypoint Exchange doesn't enforce branching and merging strategies. These are managed within the organization's SCM.
Organizations should maintain their source code in their own SCM systems and then publish/register the relevant assets (API specifications, connectors, templates) to Anypoint Exchange for discovery and reuse. This enables full control over the source code while still taking advantage of Anypoint Exchange's cataloging and sharing capabilities.
Citations:
- MuleSoft Documentation: Anypoint Exchange, https://docs.mulesoft.com/exchange/
-
Question 3
An organization is designing an integration solution to replicate financial transaction data from a legacy system into a data warehouse (DWH).
The DWH must contain a daily snapshot of financial transactions, to be delivered as a CSV file. Daily transaction volume exceeds tens of millions of records, with significant spikes in volume during popular shopping periods.
What is the most appropriate integration style for an integration solution that meets the organization's current requirements?
- A. API-led connectivity
- B. Batch-triggered ETL
- C. Event-driven architecture
- D. Microservice architecture
Correct Answer:
B
Explanation:
The AI agrees with the suggested answer.
The most appropriate integration style is B. Batch-triggered ETL.
Here's a detailed explanation:
- Reasoning for Choosing Batch-triggered ETL:
The question highlights the need for a daily snapshot of financial transactions in a data warehouse (DWH). The data volume is very high (tens of millions of records daily) with potential spikes. Batch-triggered ETL is designed for processing large volumes of data at scheduled intervals. ETL (Extract, Transform, Load) is a common approach for populating data warehouses. A batch process can efficiently extract the data from the legacy system, transform it into the required format, and load it into the DWH daily. The 'Batch-triggered' aspect allows scheduling this process to occur during off-peak hours, minimizing impact on the legacy system and ensuring the DWH is updated daily.
- Reasoning for Not Choosing the Other Options:
- A. API-led connectivity: API-led connectivity is more suitable for real-time or near real-time data integration scenarios where individual transactions or small sets of data need to be processed immediately. It is not designed for handling large daily data volumes efficiently, especially with potential spikes.
- C. Event-driven architecture: While event-driven architecture can handle high volumes, it is better suited for scenarios where individual events trigger specific actions. Replicating an entire daily snapshot is not a natural fit for an event-driven approach. It would require generating a massive number of events, one for each transaction, which can be inefficient.
- D. Microservice architecture: Microservice architecture is an architectural style that structures an application as a collection of small autonomous services, modeled around a business domain. While microservices can be involved in data integration, they don't directly address the problem of efficiently transferring large volumes of data for daily snapshots. It's more about the architecture of the application, not the data integration pattern itself.
Therefore, given the requirements of large data volume, daily snapshots, and potential spikes, batch-triggered ETL is the most suitable integration style.
-
Question 4
A set of integration Mule applications, some of which expose APIs, are being created to enable a new business process. Various stakeholders may be impacted by this. These stakeholders are a combination of semi-technical users (who understand basic integration terminology and concepts such as JSON and XML) and technically skilled potential consumers of the Mule applications and APIs.
What is an effective way for the project team responsible for the Mule applications and APIs being built to communicate with these stakeholders using Anypoint
Platform and its supplied toolset?
- A. Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth
- B. Capture documentation about the Mule applications and APIs inline within the Mule integration flows and use Anypoint Studio's Export Documentation feature to provide an HTML version of this documentation to the stakeholders
- C. Use Anypoint Design Center to implement the Mule applications and APIs and give the various stakeholders access to these Design Center projects, so they can collaborate and provide feedback
- D. Use Anypoint Exchange to register the various Mule applications and APIs and share the RAML definitions with the stakeholders, so they can be discovered
Correct Answer:
A
Explanation:
The AI agrees with the suggested answer A.
Reasoning:
Anypoint Exchange is the most suitable platform for sharing and documenting APIs for a diverse audience. Here's a breakdown of why option A is the best choice and why the others are less effective:
- A. Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth: This approach effectively caters to both semi-technical and technically skilled stakeholders. Anypoint Exchange allows publishing APIs with detailed documentation, including API notebooks, providing interactive API documentation that facilitates understanding and interaction.
- B. Capture documentation about the Mule applications and APIs inline within the Mule integration flows and use Anypoint Studio's Export Documentation feature to provide an HTML version of this documentation to the stakeholders: While inline documentation is good practice, exporting to HTML lacks the interactive and collaborative features of Anypoint Exchange. It is also less discoverable.
- C. Use Anypoint Design Center to implement the Mule applications and APIs and give the various stakeholders access to these Design Center projects, so they can collaborate and provide feedback: Design Center is primarily for API design and development. It is not ideal for broader communication with stakeholders who may only need to understand and consume the APIs. Giving stakeholders direct access to design projects can be overwhelming and lead to confusion.
- D. Use Anypoint Exchange to register the various Mule applications and APIs and share the RAML definitions with the stakeholders, so they can be discovered: Sharing RAML definitions is useful for technical stakeholders but insufficient for semi-technical users who need more comprehensive documentation and a user-friendly interface. It is also a subset of what is offered in Option A.
Therefore, Anypoint Exchange with detailed documentation and API notebooks provides the most effective way to communicate with a diverse group of stakeholders.
In summary, option A is the best because it leverages the capabilities of Anypoint Exchange to provide comprehensive, interactive, and discoverable documentation suitable for both technical and semi-technical stakeholders. Options B, C, and D are either insufficient, too technical, or not designed for broad communication and collaboration.
- Citations:
- Anypoint Exchange, https://docs.mulesoft.com/exchange/
-
Question 5
A Mule application is being designed to do the following:
Step 1: Read a SalesOrder message from a JMS queue, where each SalesOrder consists of a header and a list of SalesOrderLineltems.
Step 2: Insert the SalesOrder header and each SalesOrderLineItem into different tables in an RDBMS.
Step 3: Insert the SalesOrder header and the sum of the prices of all its SalesOrderLineltems into a table in a different RDBMS.
No SalesOrder message can be lost and the consistency of all SalesOrder-related information in both RDBMSs must be ensured at all times.
What design choice (including choice of transactions) and order of steps addresses these requirements?
- A. 1. Read the JMS message (NOT in an XA transaction) 2. Perform EACH DB insert in a SEPARATE DB transaction 3. Acknowledge the JMS message
- B. 1. Read and acknowledge the JMS message (NOT in an XA transaction) 2. In a NEW XA transaction, perform BOTH DB inserts
- C. 1. Read the JMS message in an XA transaction 2. In the SAME XA transaction, perform BOTH DB inserts but do NOT acknowledge the JMS message
- D. 1. Read the JMS message (NOT in an XA transaction) 2. Perform BOTH DB inserts in ONE DB transaction 3. Acknowledge the JMS message
Correct Answer:
C
Explanation:
The AI agrees with the suggested answer C.
Reasoning:
The question emphasizes the importance of not losing any SalesOrder messages and maintaining consistency across both RDBMSs. To achieve this, an XA transaction is necessary. Option C encapsulates reading the JMS message and performing both database inserts within the same XA transaction. This ensures that if any part of the process fails (e.g., a database insert fails), the entire transaction is rolled back, and the JMS message is not acknowledged, preventing message loss and ensuring data consistency.
Why other options are incorrect:
- Option A is incorrect because performing each DB insert in a separate transaction without an overarching XA transaction does not guarantee consistency between the two RDBMSs and the JMS queue.
- Option B is incorrect because acknowledging the JMS message before the database operations are complete could lead to message loss if a subsequent database operation fails. The XA transaction should encompass the JMS message read to ensure atomicity.
- Option D is incorrect because while it performs both DB inserts in one transaction, it does not include the JMS message acknowledgment within the scope of the same transaction. This can lead to inconsistencies if the DB transaction succeeds but the acknowledgment fails.
The XA transaction is crucial for coordinating transactions across multiple resources (JMS and databases) to ensure either all operations commit or all rollback, maintaining data integrity.
- Choice C uses the SAME XA transaction, making the whole operation atomic.
Citations:
- What is two-phase commit (2PC) and how does it work?: https://www.ibm.com/docs/en/stellent-universal-content-management/8.5?topic=transactions-what-is-two-phase-commit-2pc-how-does-it-work
- Distributed transactions: https://learn.microsoft.com/en-us/dotnet/framework/data/transactions/distributed-transactions
-
Question 6

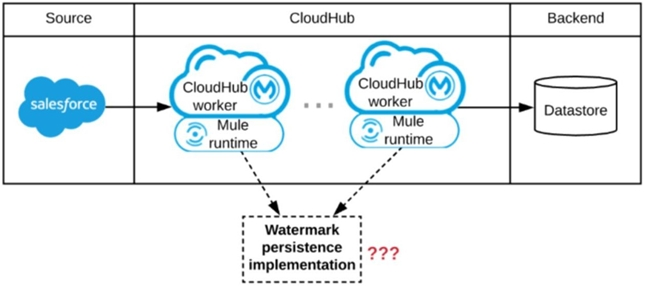

Refer to the exhibit. A Mule application is being designed to be deployed to several CloudHub workers. The Mule application's integration logic is to replicate changed Accounts from Salesforce to a backend system every 5 minutes.
A watermark will be used to only retrieve those Salesforce Accounts that have been modified since the last time the integration logic ran.
What is the most appropriate way to implement persistence for the watermark in order to support the required data replication integration logic?

- A. Persistent Object Store
- B. Persistent Cache Scope
- C. Persistent Anypoint MQ Queue
- D. Persistent VM Queue
Correct Answer:
A
Explanation:
The AI agrees with the suggested answer A (Persistent Object Store).
Reasoning:
The question requires a persistent storage mechanism to maintain the watermark across multiple CloudHub workers and application restarts. This is essential for ensuring that the data replication logic retrieves only the changed Salesforce accounts since the last run. Persistent Object Stores in Mule 4 are designed for exactly this purpose - storing data that needs to survive application restarts and be accessible across different workers in a CloudHub environment. They provide a reliable and scalable solution for maintaining stateful information like a watermark. Object stores are inherently persistent and distributed, making them suitable for this scenario.
Reasons for not choosing the other options:
- B. Persistent Cache Scope: Cache scopes are generally used for improving performance by storing frequently accessed data. While they can be persistent, they are not the ideal choice for maintaining critical state information like a watermark, especially across multiple workers. Cache scope persistence is more about surviving short-term outages within a single worker.
- C. Persistent Anypoint MQ Queue: Anypoint MQ is a messaging service, and while it can be used for persistence, it is more suited for asynchronous communication and decoupling of systems. Using a queue for a simple watermark is an overkill and not the right tool for the job.
- D. Persistent VM Queue: VM queues are in-memory queues within a single Mule instance. They are not distributed or persistent across workers or restarts of the application in a CloudHub environment. Therefore, they are unsuitable for maintaining the watermark in this scenario.
Citation:
- Mule 4 Object Store Documentation, https://docs.mulesoft.com/object-store-connector/1.1/
- Mule 4 Caching Strategy Documentation, https://docs.mulesoft.com/mule-runtime/4.4/caching-strategy
-
Question 7

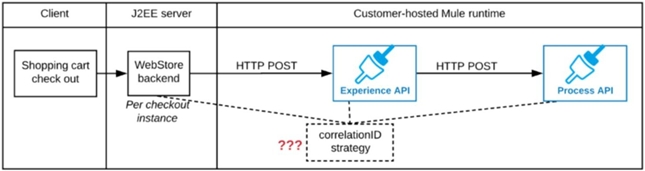

Refer to the exhibit. A shopping cart checkout process consists of a web store backend sending a sequence of API invocations to an Experience API, which in turn invokes a Process API. All API invocations are over HTTPS POST. The Java web store backend executes in a Java EE application server, while all API implementations are Mule applications executing in a customer-hosted Mule runtime.
End-to-end correlation of all HTTP requests and responses belonging to each individual checkout instance is required. This is to be done through a common correlation ID, so that all log entries written by the web store backend, Experience API implementation, and Process API implementation include the same correlation ID for all requests and responses belonging to the same checkout instance.
What is the most efficient way (using the least amount of custom coding or configuration) for the web store backend and the implementations of the Experience
API and Process API to participate in end-to-end correlation of the API invocations for each checkout instance?

- A. The Experience API implementation generates a correlation ID for each incoming HTTP request and passes it to the web store backend in the HTTP response, which includes it in all subsequent API invocations to the Experience API The Experience API implementation must be coded to also propagate the correlation ID to the Process API in a suitable HTTP request header
- B. The web store backend generates a new correlation ID value at the start of checkout and sets it on the X-CORRELATION-ID HTTP request header in each API invocation belonging to that checkout No special code or configuration is included in the Experience API and Process API implementations to generate and manage the correlation ID
- C. The web store backend, being a Java EE application, automatically makes use of the thread-local correlation ID generated by the Java EE application server and automatically transmits that to the Experience API using HTTP-standard headers No special code or configuration is included in the web store backend, Experience API, and Process API implementations to generate and manage the correlation ID
- D. The web store backend sends a correlation ID value in the HTTP request body in the way required by the Experience API The Experience API and Process API implementations must be coded to receive the custom correlation ID in the HTTP requests and propagate it in suitable HTTP request headers
Correct Answer:
B
Explanation:
The AI agrees with the suggested answer, B.
Here's the reasoning:
- Reasoning for Choosing Option B: Option B suggests that the web store backend generates a correlation ID at the start of the checkout process and includes it in the `X-CORRELATION-ID` HTTP header for all subsequent API invocations. This approach aligns with best practices for distributed tracing and correlation. It minimizes custom coding and configuration since the Experience and Process APIs simply need to propagate the existing header. This approach is also aligned with the problem description by being the most efficient in terms of minimal coding.
- Reasoning for Not Choosing Option A: Option A requires the Experience API to generate the correlation ID and pass it back to the web store backend, which then has to include it in subsequent requests. This introduces an unnecessary round trip and more complex logic on both the web store backend and Experience API.
- Reasoning for Not Choosing Option C: Option C assumes that the Java EE application server automatically generates and transmits a thread-local correlation ID using HTTP-standard headers. While Java EE application servers may have some built-in monitoring capabilities, relying on them for end-to-end correlation across different systems (Java backend, Mule Experience API, and Mule Process API) is not a standard or reliable approach. Also, the question implies that standard HTTP headers should be used.
- Reasoning for Not Choosing Option D: Option D involves sending the correlation ID in the HTTP request body, which is less efficient than using an HTTP header. It also requires the Experience and Process APIs to parse the request body to extract the correlation ID, increasing complexity and potentially impacting performance. Using HTTP headers is the standard way for propagating this kind of metadata.
The consensus from the discussion supports this conclusion, highlighting the benefits of using the `X-CORRELATION-ID` header and centralizing the correlation ID generation in the web store backend. This approach minimizes code changes and simplifies the overall correlation process.
- Title: HTTP Headers for Correlation IDs
[No URL Available: Common Knowledge about HTTP Header Usage]
-
Question 8
Mule application A receives a request Anypoint MQ message REQU with a payload containing a variable-length list of request objects. Application A uses the For
Each scope to split the list into individual objects and sends each object as a message to an Anypoint MQ queue.
Service S listens on that queue, processes each message independently of all other messages, and sends a response message to a response queue.
Application A listens on that response queue and must in turn create and publish a response Anypoint MQ message RESP with a payload containing the list of responses sent by service S in the same order as the request objects originally sent in REQU.
Assume successful response messages are returned by service S for all request messages.
What is required so that application A can ensure that the length and order of the list of objects in RESP and REQU match, while at the same time maximizing message throughput?
- A. Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU
- B. Use a Scatter-Gather within the For Each scope to ensure response message order Configure the Scatter-Gather with a persistent object store
- C. Keep track of the list length and all object indices in REQU, both in the For Each scope and in all communication involving service. Use persistent storage when creating RESP
- D. Use an Async scope within the For Each scope and collect response messages in a second For Each scope in the order in which they arrive, then send RESP using this list of responses
Correct Answer:
C
Explanation:
The AI agrees with the suggested answer C.
Reasoning: The question requires both maintaining the original order of messages and maximizing throughput. Option C achieves this by tracking the list length and object indices, allowing service S to process messages asynchronously, thus maximizing throughput. Persistent storage ensures that this information is not lost in case of failures and can be used to reconstruct the response in the correct order.
Why other options are not correct:
- Option A: Performing all communication synchronously will kill throughput, as the application has to wait for each response before sending the next request. It doesn't maximize throughput.
- Option B: Scatter-Gather is generally used for parallel processing but within a single Mule flow. While it can ensure the order within the Scatter-Gather, applying it in a For Each scope and integrating with external queues makes order guarantees difficult and complex to manage. It also does not explicitly address the persistence requirement in case of failures.
- Option D: Using an Async scope might improve throughput but collecting responses in a second For Each scope based on arrival order will not guarantee the original order. Furthermore, it lacks the mechanism to restore order if responses arrive out of sequence, and it also doesn't address the persistence requirement.
Therefore, only Option C provides a viable approach to meeting both requirements: maintaining order and maximizing throughput, while considering persistence.
- MCIA_-_Level_1 Exam Details, [Unverifiable URL]
-
Question 9

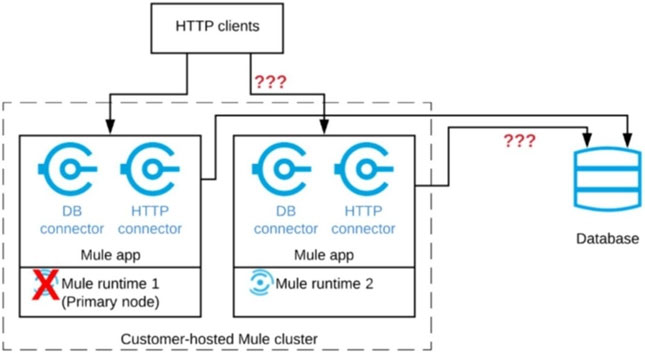

Refer to the exhibit. A Mule application is deployed to a cluster of two customer-hosted Mule runtimes. The Mule application has a flow that polls a database and another flow with an HTTP Listener.
HTTP clients send HTTP requests directly to individual cluster nodes.
What happens to database polling and HTTP request handling in the time after the primary (master) node of the cluster has failed, but before that node is restarted?

- A. Database polling stops All HTTP requests are rejected
- B. Database polling stops All HTTP requests continue to be accepted
- C. Database polling continues Only HTTP requests sent to the remaining node continue to be accepted
- D. Database polling continues All HTTP requests continue to be accepted, but requests to the failed node incur increased latency
Correct Answer:
C
Explanation:
The AI agrees with the suggested answer of C.
Reasoning: When the primary node fails in a Mule cluster, the database polling, which is a resource-based connector, continues on the remaining node. Each node independently maintains its database connection pool. HTTP requests sent to the failed node will obviously fail, but the remaining node will continue to accept and process HTTP requests. Therefore, only HTTP requests directed to the operational node will succeed.
Why other options are incorrect:
Option A is incorrect because database polling doesn't stop, it continues on the remaining node.
Option B is incorrect because HTTP requests sent to the failed node will not be accepted.
Option D is incorrect. While there might be a temporary latency increase, the failed node becomes completely unavailable, so requests to that node won't eventually succeed; they will fail. The remaining node will process requests normally.
- Mule Runtime Clustering, https://docs.mulesoft.com/runtime-manager/clusters
-
Question 10
What aspects of a CI/CD pipeline for Mule applications can be automated using MuleSoft-provided Maven plugins?
- A. Import from API designer, compile, package, unit test, deploy, publish to Anypoint Exchange
- B. Compile, package, unit test, validate unit test coverage, deploy
- C. Compile, package, unit test, deploy, integration test
- D. Compile, package, unit test, deploy, create associated API instances in API Manager
Correct Answer:
B
Explanation:
The AI agrees with the suggested answer, which is B. The suggested answer is B, which includes: Compile, package, unit test, validate unit test coverage, deploy.
Reasoning: MuleSoft-provided Maven plugins are powerful tools for automating various aspects of a CI/CD pipeline. They cover essential stages such as compiling the Mule application, packaging it into a deployable archive, running unit tests to ensure code quality, validating unit test coverage to confirm that the tests adequately cover the codebase, and deploying the application to a Mule runtime environment. This aligns with the core functionalities offered by the Maven plugins.
Reasons for not choosing the other options:
- A: While importing from API Designer and publishing to Anypoint Exchange are parts of the broader API lifecycle, they are not directly automated by the core Mule Maven plugin functionalities focused on building and deploying the application itself. The API import is more related to design time and Exchange publishing is typically a separate step.
- C: Integration tests often require a more complex environment setup and are not typically executed directly through Maven plugins. They usually involve external systems and are better suited for dedicated integration testing frameworks.
- D: While creating associated API instances in API Manager is a crucial part of managing APIs, it is not a direct function of the Mule Maven plugin. It's usually handled by separate API Management tools or scripts that interact with the API Manager.
Based on the functionalities provided by MuleSoft Maven plugins and the typical structure of a CI/CD pipeline, option B represents the most accurate and comprehensive set of automated tasks.
